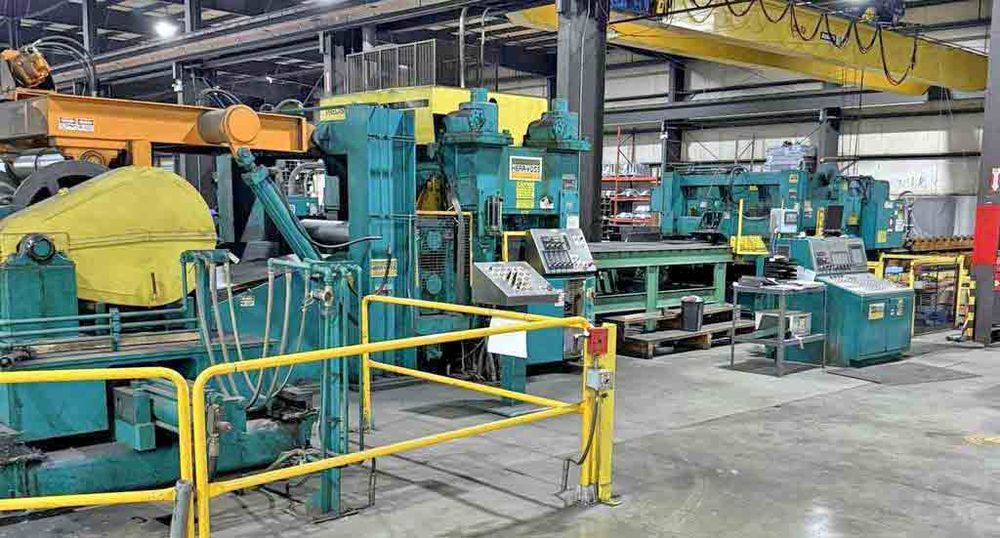

Herr Voss CUT TO LENGTH LINE Coil weight: 60000 lb

Material width: 36 - 74 in
Material thickness: 0.075 - 0.500 in at 45000 PSI yield
Material thickness: 0.375 in at 80000 PSI yield
Coil ID range: 20 - 34 in
Maximum coil OD: 84 in
Jog speed: 50 fpm
Line speed: 20 - 175 fpm
Line direction: left to right
3 coil storage
Hydraulic lever type holding mechanism
Cone type uncoiler
Motorized feedup AC motor
Air clutch
Water cooled brake
Sliding base
Coil lift with 12 in bore hydraulic cylinder
Motorized overarm holddown roll
Steel roll powered by AC motor
Hydraulic actuated peeler table
Powered width adjustment
4-high precision leveler
Thickness range: 0.096 - 0.500 in
11 work rolls
Roll size: 4.50 x 88 in
5 flights of motorized backups
Leveler motor power: 200 hp
Leveler motor speed: 850 / 1700 rpm
Powered squaring guides
Maximum width opening: 80 in
Powered tailout pinch rolls
Hydraulic cylinder open and close
Entry encoder roll
Mechanical shear
Blade gap adjustment control
Straight blade rake
Material holddowns
AC motor
Drop type stacker
Side guide retainers with powered side tap
Stacker capacity: 40000 lb
Minimum sheet length: 24 in
Maximum stacked sheet length: 24 ft
Runout conveyor length: 40 ft
Main operator control panel
Main hydraulic power unit
Mechanical drawings included
Electrical drawings included
Operator manual included
Stretch leveler retrofit system
Maximum yield strength at maximum thickness: 45000 PSI
Maximum thickness: 0.500 in
Minimum thickness: 0.060 in
Maximum entry width: 75 in
Maximum stretch clamp center distance: 240 in
Stretch cycle time: 5 sec
Hydraulic power unit motor: 150 hp AC
Hydraulic flow: 85 GPM
Electrical requirement: 460 V / 3 phase
Air requirement: 80 PSI
Maximum ambient temperature: 100 F
Minimum ambient temperature: 35 F
Delivery time: approximately 14 months
