Herr Voss CUT TO LENGTH LINE with New Red Bud Stretch Leveler

Strip width: 30"–72"
Strip thickness: 0.096"–0.500" at 40000 PSI
Coil ID range: 20"–30"
Coil OD range: 39"–84"
Coil weight: 60000 lb
Sheet length: 24"–24'
Stack height: 18"
Max stack weight: 40000 lb
Line speed: 175 fpm
Leveler capacity: 0.096"–0.500" at 40000 PSI
Leveler max thickness at 80000 PSI: 0.230"
Leveler roll diameter: 4.5"
Leveler roll face: 88"
Leveler rolls: 11 (5 over 6)
Leveler motor: 200 hp DC motor, 850/1700 rpm, 500 V
Inspection conveyor length: 10'
Powered roller conveyor length: 28'
Runout conveyor length: 30'
Overall line length: 123'
Line direction: left to right
Max entry width (stretch leveler): 75"
Max stretch clamp center distance: 240"
Stretch cycle time: 5.0 sec
Hydraulic power: 150 hp AC / 85 gpm
Electrical requirement: 460 V, 3-phase
Air requirement: 80 psi
Max ambient temperature: 100 F
Min ambient temperature: 35 F
Delivery time: 14 months

Features / Equipment

Entry coil staging ramp
Three coil positions
Hydraulic transfers
Pit-type coil lift

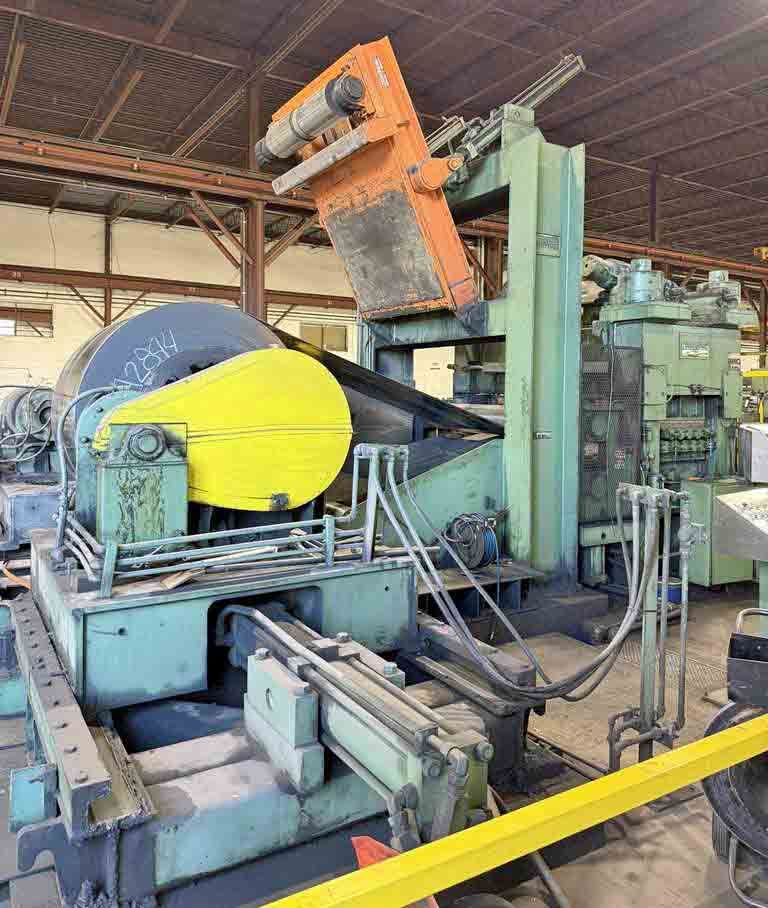

Double cone uncoiler
Water-cooled drag brake on both heads
Powered threading drive
Sliding base
Heavy-duty motorized overarm holddown roll
Articulation peeler table
Precision leveler
Five flights of backups
Side guide unit with hydraulic motor adjustment
Measuring roll
Mechanical downcut shear
Air clutch and brake
AC motor driven flywheel
Drop stacker 21' long, end discharge
In-line powered runout conveyor
Controls and hydraulics
Spare parts
