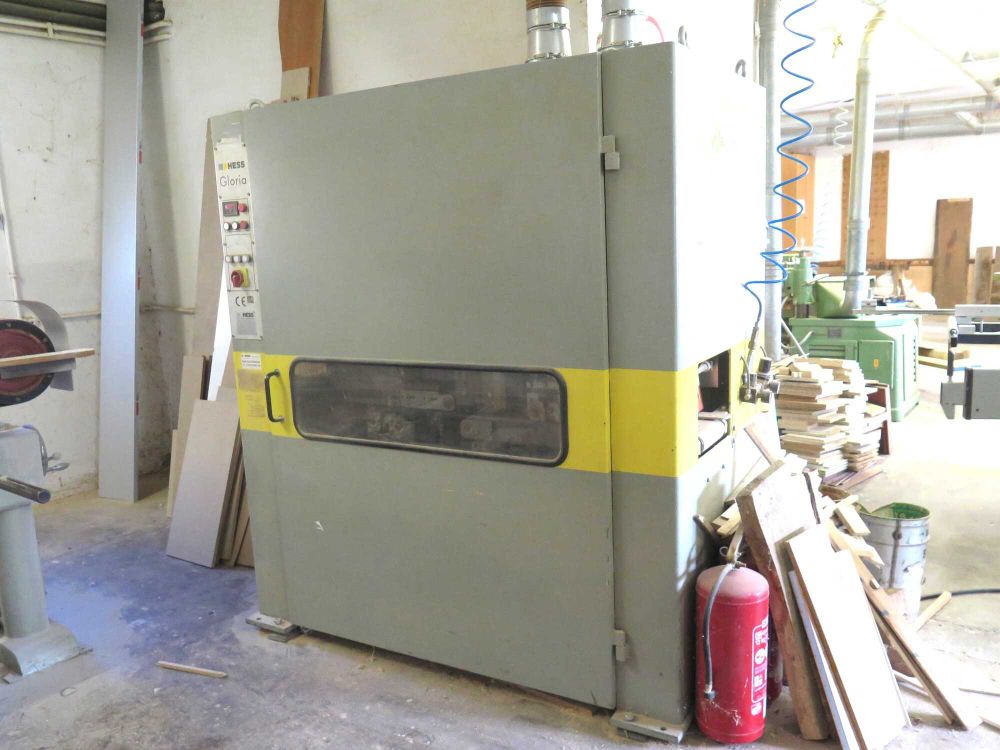

Hess GLORIA

Double-Sided Grinding Machine
Grinding Width: 190 mm
Grinding Thickness: 4 – 180 mm
Grinding Shoe and Brush: Top-Mounted
Grinding Shoe and Brush: Bottom-Mounted
Oxide Ceramic: Wear-Free and Maintenance-Free
Motorized Height Adjustment with Digital Display
Minimum Workpiece Length: 300 mm
Oscillating Grinding Belts
Belt Blow-Off Nozzle
Workpiece Transport via Conveyor Belts
Belt Width: 200 mm x Belt Length: 1600 mm
Grinding Motor: 2 x 4 kW
Flow Speed: Infinitely Variable 5-25 m/min

Feed Motor: 0.75 kW
Height Adjustment: 0.18 kW
Belt Speed: 24 m/sec

Working height – table height 830 mm
Dust extraction port diameter 2 x 160 mm
Extraction air volume 2 x 2000–2500 m³/h

Machine dimensions:
Length 1660 mm x Width 1030 mm x Height 1820 mm
Height with dust extraction port 1930 mm
Weight: 1500 kg
