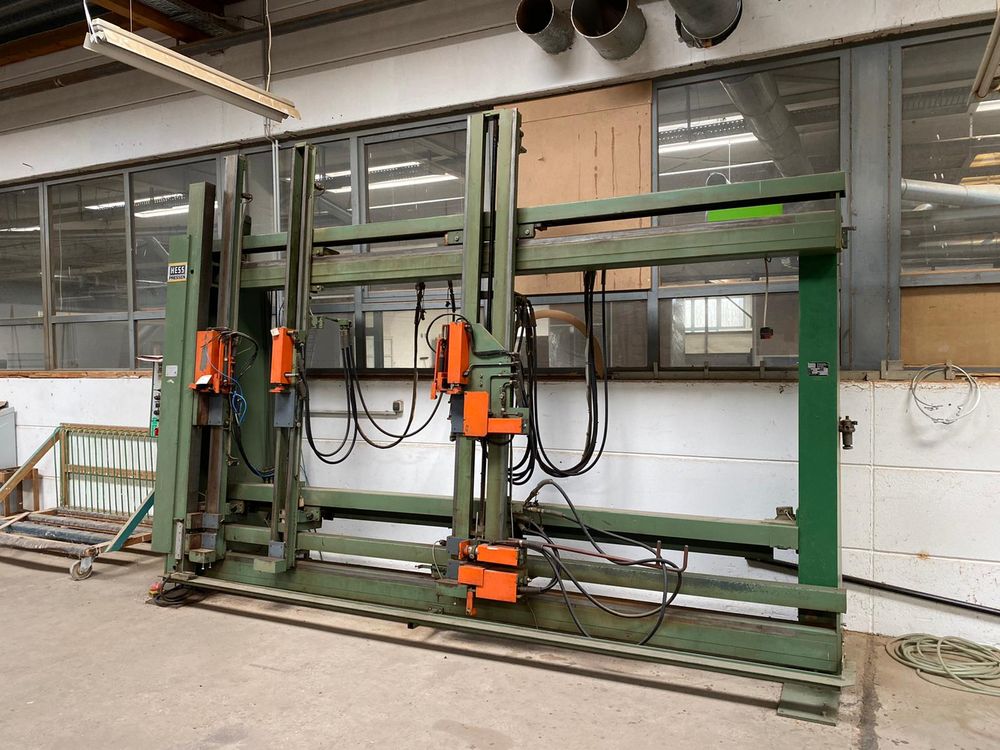

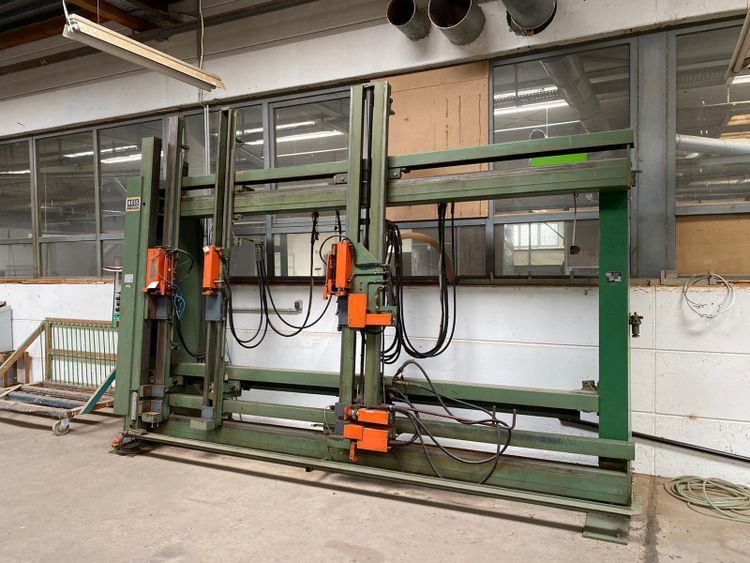

Hess HYDRO-LUX

Hydraulic frame press
Pressing dimensions approx. L 3550 mm x W 2250 mm
Connection values: 380 V / 50 Hz
2.6 kW hydraulic pump
Machine dimensions: Length 6600 mm x Width 1600 mm x Height 2770 mm
0 - 8 bar pneumatic
Optoelectronic dimension sensing.

The window scantling is placed in the feed channel so that the photoelectric sensor can measure whether the pressure beams and press corners need to be opened or closed.
When the sensor's light beam hits the window scantling, the machine receives the command to extend in width and height until the working dimension is reached.

Workflow:
Automatic dimension adjustment
Loose insertion
Automatic pressing sequence
Loose feeding
Removal
Automatic dimension adjustment

Control program selection options:
1. Automatic dimension adjustment via optoelectronic dimension query with automatic pressing sequence.
2. Motorized dimension adjustment via manual input, with or without automatic pressing sequence.
3. Motorized dimension adjustment and manual pressing sequence, separated vertically and horizontally (for complex frame elements).
