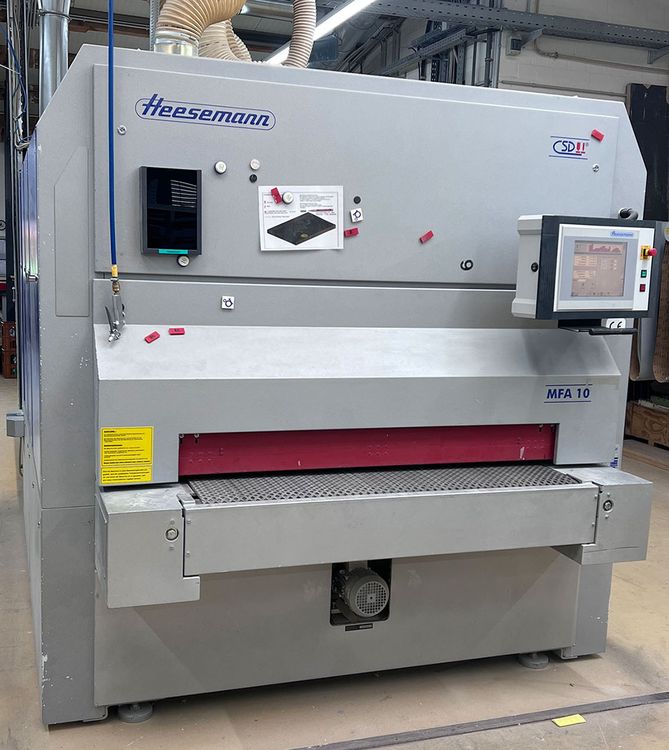

Hessemann MFA 10

Used machine
Multi-purpose surface grinding machine
Excellent condition

Grinding width 1,350 mm
Transverse / Longitudinal / Longitudinal DLB
Feed speed 5-25 m/min, frequency-controlled

Conveyor belt cleaning system
Constant working height 880 mm
Workpiece thickness 3-150 mm
Motorized adjustment
Pressure roller diameter 50 mm at machine infeed

12-inch industrial PC
Operating system Windows XP, E
Touchscreen
Program memory for 100 programs

1 Transverse grinding unit
Grinding belt dimensions 5,400 × 150 mm
Belt speed 2-20 m/s, frequency-controlled
Drive power 15 kW
Pressure flap system
Blast cleaning system, workpiece-dependent control

1 Longitudinal grinding unit
Grinding belt dimensions 2,620 × 1,400 mm
Belt speed 1.8-18 m/s
Drive power 15 kW, frequency Controlled,

Belt blasting unit, workpiece-dependent control
Cylinder and counter-rotation

1 longitudinal grinding unit with pressure flap belt
Grinding belt dimensions 2,620 × 1,400 mm
Belt speeds 1.6–16 m/s
Drive power 15 kW, frequency controlled

Three pressure bars with computer-controlled selective pressure control system (CSD)
with stepless pressure adjustment of the individual pressure elements, 16 mm wide

1 brush unit
Central, height-adjustable, including extraction hood and pressure roller
Diameter 150 mm
Drive power 1.5 kW

1 workpiece suction clamping system
for workpieces shorter than 700 mm in the feed direction

1 ionization bar from above
for dissipating static charges, including high-voltage transformer

1 workpiece blasting unit
with rotating compressed air nozzles inside the machine area, including extraction hood
