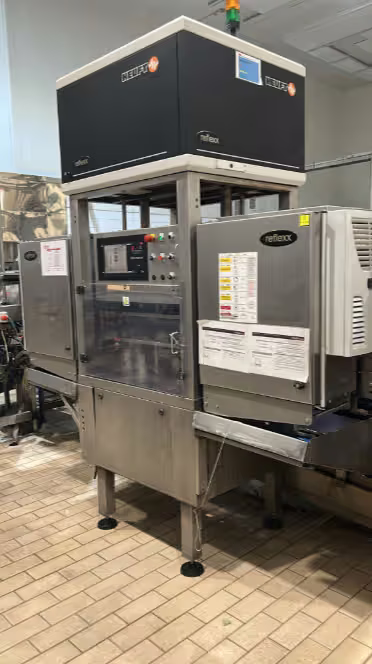

Heuft HBB-RT-64, Empty Bottle Inspector

• Capacity: up to 60,000 bottles/hour (machine) / up to 54,000 bottles/hour (filler)
• Formats: 20 cl returnable glass bottles
• Application: Empty bottle inspection (returnable glass bottles)
• Configuration: Single-lane installation between bottle washer and filler
• Inspection technology: HEUFT reflexx inspection system
• Inspection systems:
Base inspection (foreign body detection)
Finish inspection (mouth / finish defects)
Double sidewall inspection with 90° rotation
Residual liquid detection (Dual High Frequency + Infrared)
• Detection & rejection:
Detection of fallen, tilted, higher or lower bottles
DELTA reject system
• Vision system:
CCD matrix cameras
32-bit image processors
Stroboscopic lighting with microprocessor control
• Control system: HEUFT SPECTRUM multiprocessor control
• Operator interface: HEUFT PILOT LCD terminal with membrane keyboard and LED counter display
• Construction: Stainless steel and synthetic material housing
• Additional features:
Encoder for conveyor speed monitoring
Automatic air-blow cleaning system
Pre-programmed bottle formats with additional programs
