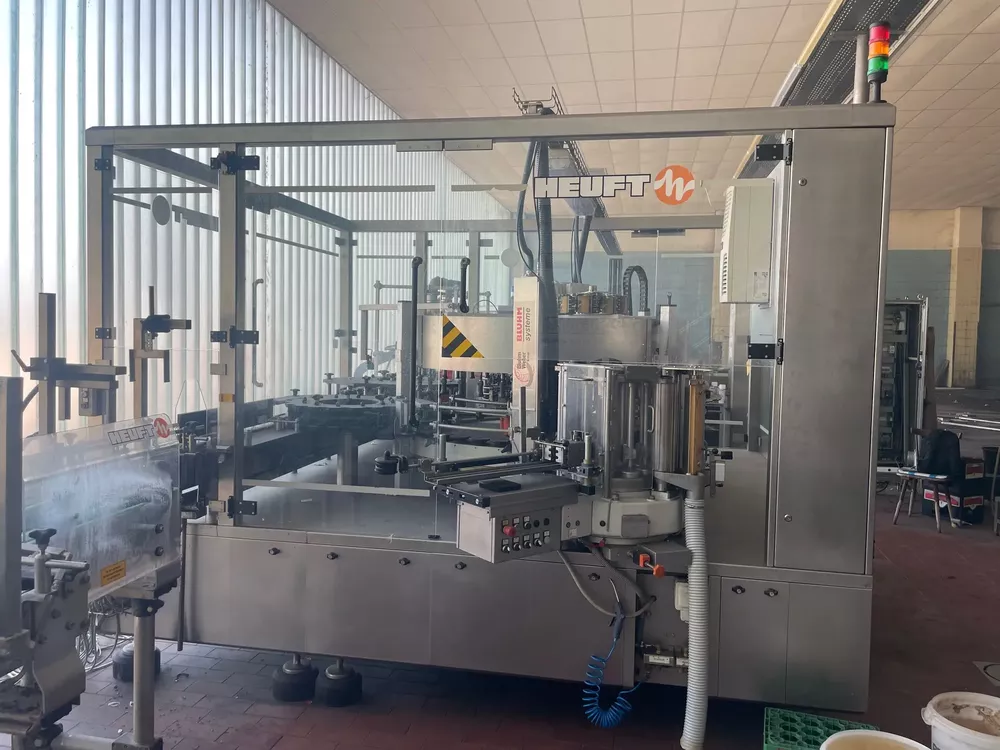

Heuft Tornado, Cold Glue Labeler

Capacity: Up to 60,000 bottles per hour
Formats: Supports 11 bottle formats
From 0,3l - 0,66l
Steini, NRW, Longneck
Container types: Glass, not transparent, non-contoured
Container diameter: 60.4 – 69.1 mm
Container height: 174 – 270 mm
Label positions:
Front (up to 2 labels)
Back (up to 1 label)
Label size range:
Width: 70 – 111 mm
Height: 33 – 100 mm
Band height: 1100 mm
Max. ambient temperature: 40°C
Power connection: 400 V
Machine design: Straight version, size L (approx. 3360 mm wide)
Bottle carousel diameter: 1610 mm
Number of bottle plates: 42
Bottle rotation in carousel: Mechanical
Guide star diameter: 690 mm
Labelling stations:
2 x Cold glue labelling stations
8 glue pallets
9 gripper positions
Automatic magazine feeding

Scope of Delivery
1 x Labelling Machine | HEUFT | TORNADO | 2005
Including:
2 x Integrated Laser Coders | Bluhm
Complete labelling setup with format parts for 11 bottle formats
Cold glue stations, glue pallets, gripper arms, and automatic magazine
Technical documentation
