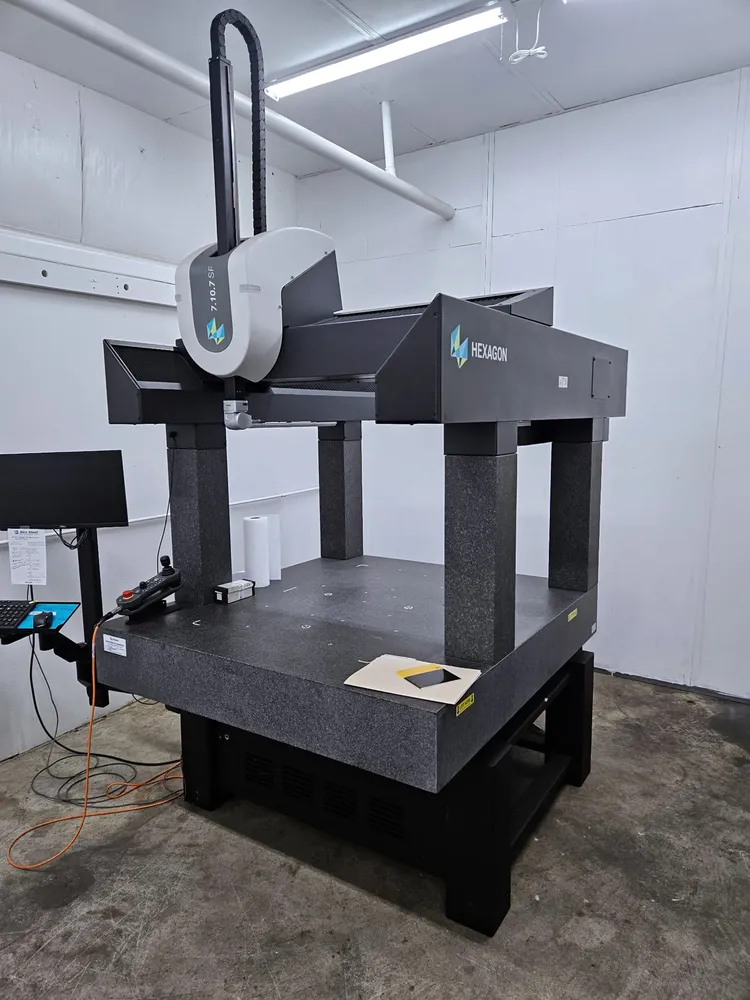

HEXAGON 7.10.7 SF

X-Axis Travel: 27.56"
Y-Axis Travel: 39.76"
Z-Axis Travel: 26.77"
Control: PC-DMIS
Never Run a Part
Probe
Last Calibration: 2023
Measuring Envelope: 27.95" × 39.76" × 26.77"
Work Capacity: 34.50" × 54.72" × 31.22"
Maximum Workpiece Weight: 2,000 lbs
Maximum 3D Velocity: 520 mm/s
Acceleration: 1,732 mm/s2
Accuracy: ISO 10360-2 (2009), 3.1 μm + 0.05 + (3.0 + 0.2)L/1000 at 20°C
Operating Temperature: 15–40°C
Power Supply: 110/220 VAC
Integrated Computer
Integrated Controller
Integrated Interface Boxes
Overall Dimensions: 87.01" × 69.06" × 108.66"
Machine Weight: 3,711 lbs
