1/1
Heyligenstaedt Heynumill Ecoflex 5000 rpm
Ref :
2724076-3-MT
Condition :
Used
Manufacturer :
Heyligenstaedt
Model :
Heynumill Ecoflex
Spindle Speed :
5000 rpm
Spindle Size :
-
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

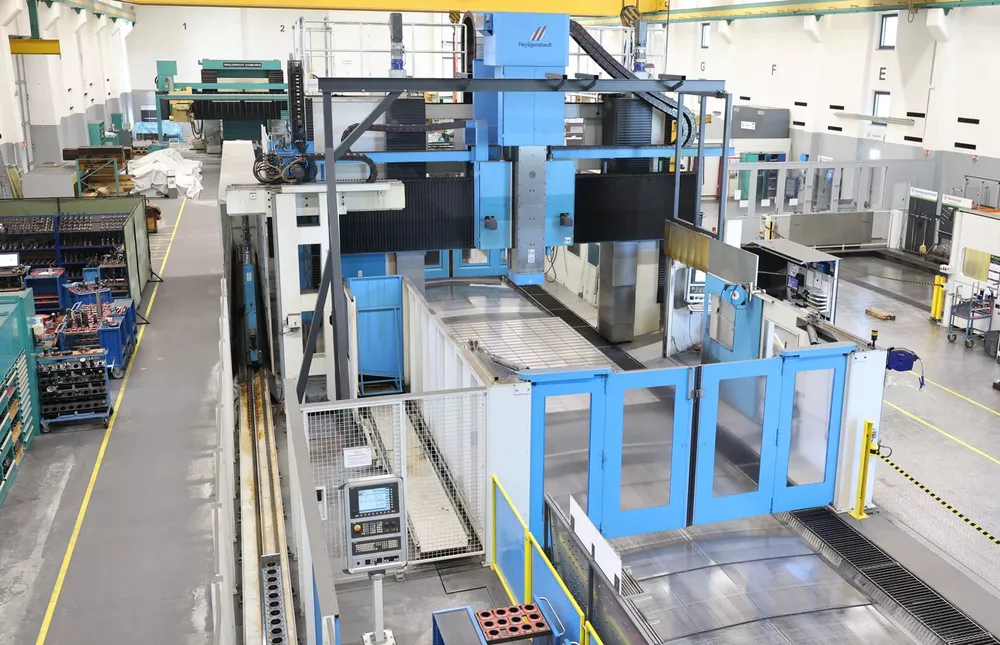

Heyligenstaedt Heynumill Ecoflex
Year: 2010
Control: Siemens 840 D
X-Axis Travel: 6500 / 13500 mm
Y-Axis Travel: 4000 mm
Z-Axis Travel: 1500 mm
W-Axis Travel: 2250 mm
Table Size: 5500 / 12500 x 3000 mm
Max Workpiece Weight: 50000 / 75000 kg
Ram Dimensions: 520 x 625 mm
Spindle Motor Power: 67.4 kW (S1/100%)
Spindle Torque: 2900 Nm
Tool Holder: DIN 69893 HSK-A 100
Spindle Speed Range: 1 – 1000 / 5 – 5000 rpm
Feed Speed: 1 – 24000 mm/min
W-Axis Feed Speed: 1 – 6000 mm/min
Clearance Between Uprights: 3500 mm
Clearance Height: 3000 mm
Total Power Requirement: 120 kW
Machine Weight: approx. 250 t
Space Requirement: approx. 29.5 x 9.5 x 8.2 m
