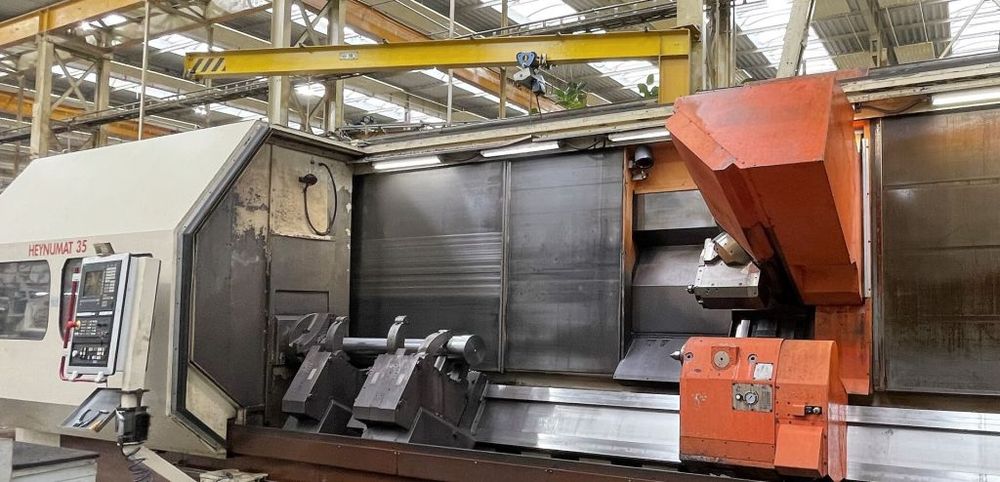

Heyligenstaedt Sinumerik 840D Control Variable HEYNUMAT 35/6000 4 Axis

Ref : 2804088-3-GO

Condition : Used

Manufacturer : Heyligenstaedt

Controller : Sinumerik 840D Control

Spindle Speed : Variable

Model : HEYNUMAT 35/6000

Nb Of Axis : 4 Axis

Year(s) : 2002

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: -10 / +490 mm
Y-Axis Travel: -130 / +300 mm
Z-Axis Travel: +180 / +6110 mm
C-Axis: Yes
C-Axis Torque: 5000 Nm
Rapid Traverse X/Z: 15 m/min
Rapid Traverse Y: 10 m/min
Siemens Sinumerik 840D Control
Spindle Bore: 122 mm
Maximum Turning Diameter: 820 mm
Swing Over Bed: 890 mm
Center Distance: 6000 mm
Main Drive Power: 80 / 105 kW
Spindle Nose: A15 / DIN 55026
Milling Spindle Power: 28 kW
Milling Spindle Torque: 267 Nm
Tool System: Capto C8
Tool Magazine Capacity: 100 Positions
Maximum Tool Length: 650 mm
Tailstock
Tailstock Quill Diameter: 160 mm
Tailstock Taper: MK6
3 Steady Rests
1 Programmable Steady Rest
Chip Conveyor
Paper Belt Filter System
Machine Dimensions: 17000 x 4900 x 3300 mm
Weight: 33000 kg
