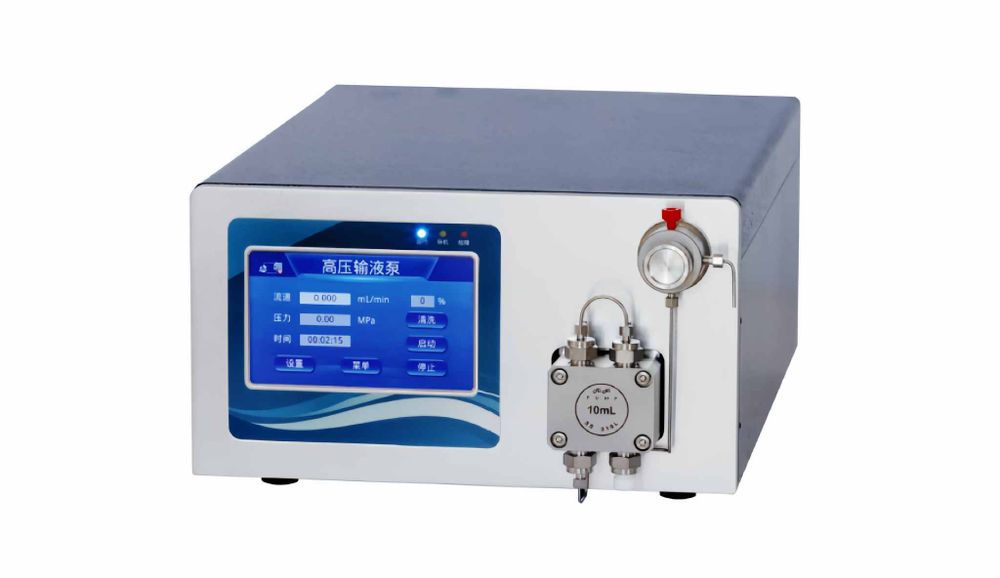

High-Pressure Infusion Pump

The device uses a dual plunger mode, floating plunger design. With an advanced pump drive system, the pump has better performance, higher accuracy and better stability. Using electronic pulsation compensation technology, multi-point flow correction, to ensure the flow accuracy in the full flow range, more accurate flow rate, more stable performance and reliable operation. Firmware program can be updated online, with power failure protection program. It can alarm in time and automatically stop the operation of the pump according to the set program.

Product parameters
Model: EMP0010
Inlet port: 1/8
Outlet port: 1/16
Infusion way: Double pistons in series model
Min flow set: 0.001mL／min
Flow rate range: (0～9.999) mL/min
Max.working pressure: 42Mpa
Pressure pulsation: 0.5%，at10Mpa
Flow accuracy: ±0.15％
Flow stability（RSD): 0.1%
Control mode: RS232 or LAN
Display : 5.0-inch touch screen
Overall dimension(L*W*H): 368*260*140
Power: 75W
Weight: 6.9kg
