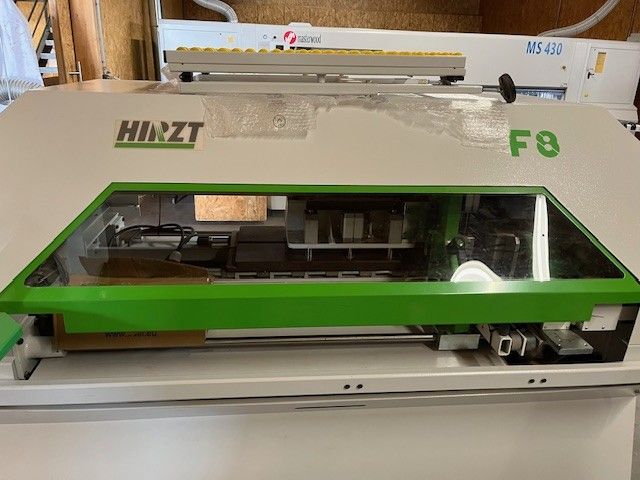

Hirzt F 8 3-axis

CNC drilling machine
The machine's concept is incredibly simple.
The workpiece is inserted into the machine. A quickly adjustable stop with pneumatic locking centers the workpiece in the machine.
After pressing a foot switch, the workpiece is pneumatically clamped and automatically conveyed to the drilling unit (30 m/min).
The vertical spindles drill from below, so that the resulting chips do not remain on the workpiece as in a machining center.
The horizontal spindles operate on two sides of the workpiece.
The workpiece can be of any length, as the workpiece is guided to the drilling unit (= X-axis).
The workpiece width varies between 600 and 1000 mm, depending on the model.
The drilling spindles are freely programmable individually or as a block and move along the Y-axis.
The drilling depth and the horizontal drills are controlled by the Z-axis.
After all drilling operations have been completed, the workpiece is conveyed back to the infeed side or, if desired, to the outfeed side.
While conventional machining centers clamp the workpiece with vacuum and require the vacuum clamps to be adjusted
to the workpiece size, this step is completely eliminated with the 3-axis controlled point-to-point drilling machine.

Advantages:
-High machining speed
-Good price-performance ratio
-Small space requirement

All drilling operations can be performed in the smallest of spaces:
-Linear hole drilling
-Structural drilling
-Hardware drilling
-Cabinet connection drilling

The drilling head has 7 vertical drilling spindles and 1 horizontal double drilling spindle.

Equipment:
- Welded machine frame
- Drilling head with 7 vertical drilling spindles and 1 horizontal twin drilling spindle
- 3-axis control:
- X: NC-controlled panel feed via a pneumatic clamping pliers
- Y: NC-controlled drilling head movement
- Z: NC-controlled drilling spindle depth adjustment
- TRK precision guides
- Pneumatic split pressure beam above the drilling unit
- Pneumatic roller clamps in the infeed area
- Pneumatic clamping pliers for transport
- Pneumatically lockable side stop with rollers
- Controlled by a Windows XP-based PC (1 GB flash memory)
- 8" color screen
- Alphanumeric multifunction keyboard including mouse
- Network card
- USB interface

Technical specifications:
Number of controlled axes: 3
Maximum panel width:
F 8: 1,000 mm
Maximum drilling width:
F 8: 800 mm
Maximum feed rate (X-axis): 30 m/min
Drill speed: 3,400 rpm
Maximum drill diameter: 35 mm
Maximum total drill length: 70 mm
Drill bit holder: 10 mm shank with clamping surface
Power consumption: 2.5 kW
Extraction nozzle diameter: 100 mm
Required pressure: 6 bar
Working height: 900 mm
Fold-out roller support, infeed side, 500 x 750 mm
Machine dimensions (L x W): F 8: 1,650 x 1,920 mm
