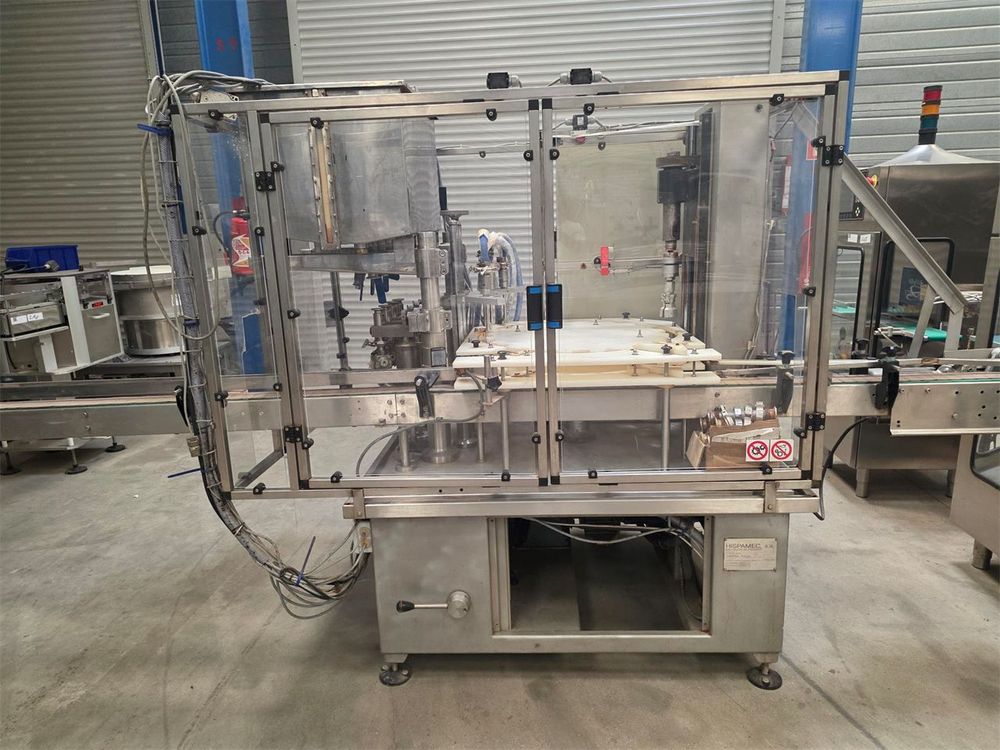

HISPAMEC C1, Rotary filling and screwing machine for bottles

Weight : 600 kg
Dimensions : (L x W x H) 4.00 x 1.30 x 1.80 M

Equipped with:
Plastic slat-chain bottle infeed conveyor (100 mm wide, 2400 mm long).
20-pocket transfer plate moving bottles to the packaging stations.
Filling station with 4 stainless steel nozzles (15 mm diameter).
Dosing station with 4 adjustable stainless steel volumetric pistons featuring check valves.
Pump configuration: two 150 ml pumps and two 500 ml pumps.
Manual cap placement station (operator-assisted).
Capping station with a clutch-equipped capping head.
Main drive system powered by 3 motors with electronic variable speed control (conveyor, machine, and capper).
Safety guarding/enclosures.
Current tooling: 52 mm diameter bottle.

Capacity:
Bottle size: 50 to 1000 ml
Diameter: 15 mm (min.) to 80 mm (max.)
Height: 30 mm (min.) to 250 mm (max.)
Max. hourly output: approx. 2,000 to 2,500 bottles.
Motor power: 2 kW.
