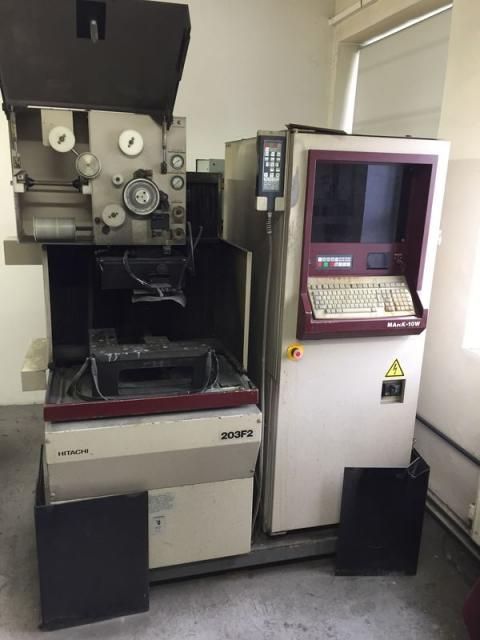

Hitachi 203 F2

Workpiece capacity: 450 × 350 × 170 mm
Maximum workpiece weight: 200 kg
X-axis travel: 320 mm
Y-axis travel: 250 mm
Z-axis travel: 170 mm
U-axis travel: ±20 mm
V-axis travel: ±20 mm
Maximum taper: ±12° / 70 mm
Rapid traverse: 1,500 mm/min
Axis interpolation resolution: 0.0001 mm
Display resolution: 0.001 mm
Wire diameter: 0.25 mm (0.10 / 0.20 / 0.30 mm optional)
Wire tension: 2–28 N
Wire spool: DIN 200, P15
Generator type: Digital AC-I
Maximum output current: 22 A
Voltage levels: 4
Current levels: 28
Frequency levels: 32
Cutting speed (0.25 mm CuZn wire): 120 mm2/min
Cutting speed (0.30 mm CuZn wire): 210 mm2/min
Cutting speed (0.30 mm coated wire): 225 mm2/min
Power supply: 3 × AC 200 V ±10%, 50/60 Hz
Power consumption: 11 kVA (8.6 kW)
Water tank capacity: 160 L
Machine dimensions: 1880 × 1525 × 1810 mm
Machine weight: 1,500 kg
Paper cartridge filtration system (2 cartridges)
Differential cooling system
Adjustable water conductivity: 5–150 μS/cm
Deionization capacity: 5 L
