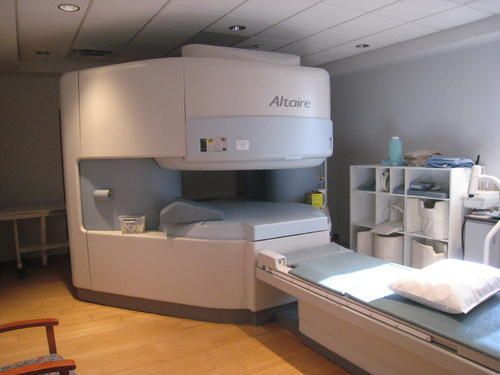

Hitachi Altaire 0.7T Open MRI Scanner

The Hitachi Altaire 0.7T Open MRI Scanner is a top-tier system that
redefines the capabilities of open MRI.
It features Hitachi’s signature asymmetric two-post architecture,
providing a spacious and open gantry design that is ideal for
reducing claustrophobia and accommodating a wide range of patients,
including pediatric, elderly, and bariatric individuals.
At its core is a 0.7T vertical field superconducting magnet,
which delivers excellent homogeneity and high-field performance with
a patient gap of 47cm. The system is enhanced by VOSI® technology
(Vertical-Field with Optimized Sub-System Integration),
which ensures consistently high image quality by harmonizing the
performance of the magnet, gradients, RF, and computer subsystems.
The Altaire is equipped with powerful gradients
(22 mT/m and 55 T/m/s slew rate) to support advanced imaging
protocols such as echo-planar imaging, perfusion,
and diffusion-weighted imaging, offering clinicians a robust and
versatile tool for a wide range of diagnostic needs.

Key Features:
Field Strength: 0.7T Superconducting Vertical Field Magnet
Patient Comfort: Open, asymmetric two-post design with
a 47 cm patient gap
Technology: VOSI® for integrated performance optimization,
and advanced imaging protocols like Echo Planar Imaging (EPI)
Gradients: High-performance gradients with a maximum amplitude of
22 mT/m and a slew rate of 55 T/m/s
Patient Table: Power-driven table with a 500 lbs (227 kg) weight limit and
a width of 80 cm
Computer System: 64-bit RISC-based architecture for
high-speed image processing
Cooling: Superconducting magnet with a cryogen refill interval of
approximately one year

Technical Specifications:
Brand: Hitachi
Device Type: Open MRI Scanner
Field Strength: 0.7T
Gantry Opening: 47 cm
Patient Weight Capacity: 500 lbs (227 kg)
Gantry Design: Open, vertical field
Magnet Weight: 41 tons
Applications: Whole-body imaging, orthopedic, neuro, abdominal,
and pediatric studies
