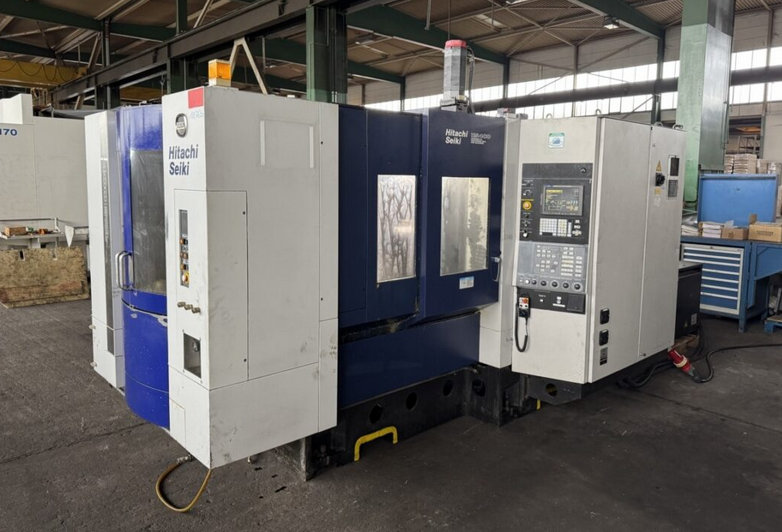

Hitachi Seiki HS400 4 Axis

X-axis travel: 600 mm
Y-axis travel: 580 mm
Z-axis travel: 580 mm
B-axis (table): 360 × 1°
Feed rate X/Y/Z: 1–50,000 mm/min
Rapid traverse X/Y/Z: 50 m/min
Control system: SEICOS 16M
Spindle speed range: 35–12,000 rpm
Spindle motor power: 22 kW
Max spindle torque: 236 Nm
Tool taper: BT40
Tool magazine capacity: 61 positions
Pallet size: 2 × 400 × 400 mm
Max workpiece diameter: 630 mm
Max workpiece height: 680 mm
Max workpiece weight: 400 kg
Coolant system: included
Chip conveyor: included
Electronic handwheel: included
Dust extractor: included
Total power requirement: 30 kW
Machine weight approx.: 12 t
Machine dimensions (L×W×H): 4.00 × 3.50 × 3.00 m
