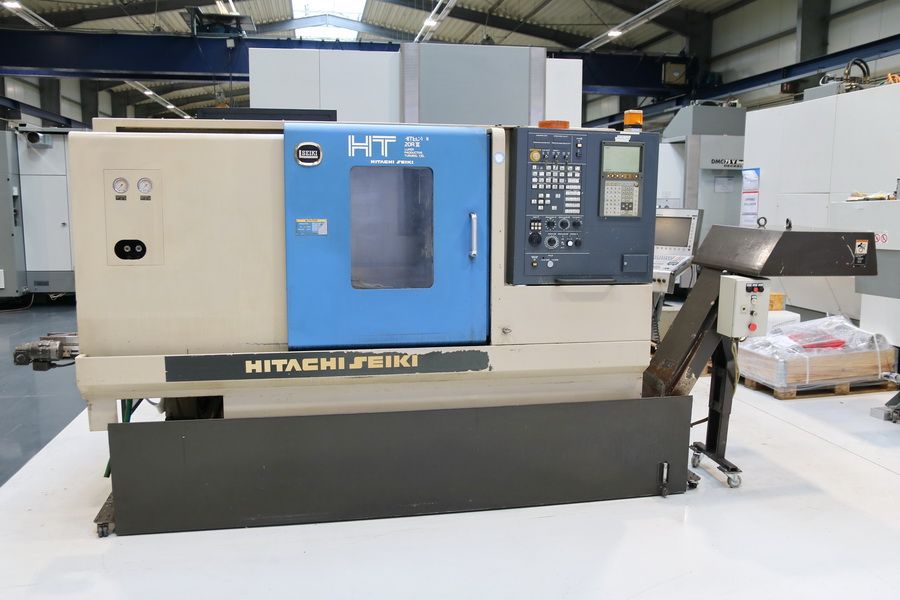

Hitachi Seiki Seicos 40L Multi 5000 rpm HiTec-Turn HT 20 RIII 2 Axis

X-axis travel: 215 mm
Z-axis travel: 400 mm
Rapid traverse X/Z: 30 m/min
Control: Seicos 40L Multi
CNC control
Bar capacity: 51 mm
Turning diameter: 450 mm
Max. machining diameter: 340 mm
Turning length: 380 mm
Spindle speed range: 30–5000 rpm
Spindle motor power: 11 / 7.5 kW
Spindle nose: A2-6
Spindle bore: 59 mm
Spindle bearing diameter: 100 mm
Feed rate: 0.001–500 mm/min
Turret positions: 16
Tool shank size: 25 x 25 mm
Drill shank diameter: 40 mm
Tailstock taper: MK 5
Tailstock travel: 300 mm
Total power requirement: 23 kVA
Machine dimensions: 5.5 x 2.8 x 2.2 m
Machine weight: 4.6 t
Chip conveyor
Parts removal system
Signal light
Tailstock
Tool holders
Tool setter
Work light
