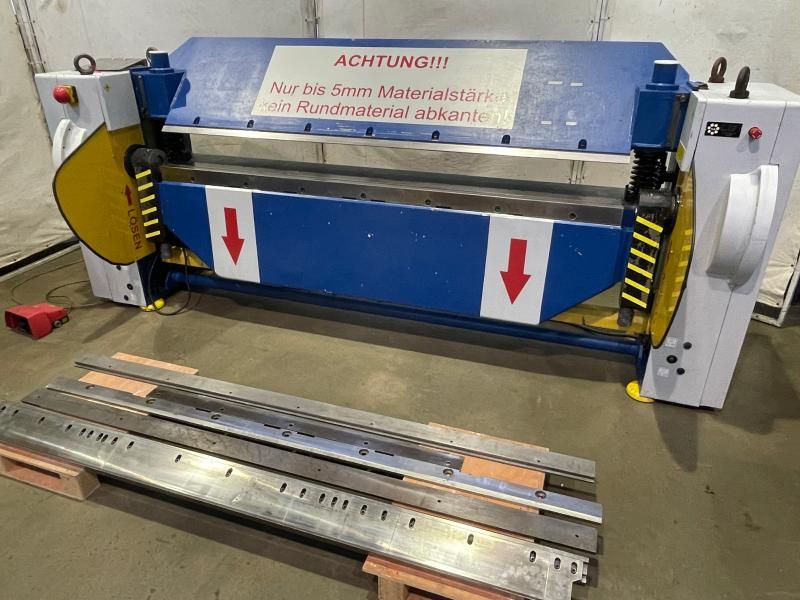

HM KSM-5 / 2500 Working length 2,520 mm

Maximum sheet thickness 5 mm at 400 N/mm²
Upper beam stroke 200 mm
Bending beam adjustment range 60 mm
Upper beam motor power 2.2 kW
Bending beam motor power 4 kW
Electrical connection 400 V / 50 Hz
One-piece pointed clamping beam 135°
Segmented gooseneck tooling with mounting rail
Rounding tool up to 180°
Various bending bars for bending beam
Adjustable bending angle via rotary dial with locking
Electric foot switch
Operating manual with electrical diagrams
No back gauge
Machine length 3,900 mm
Machine width 1,150 mm
Machine height 1,560 mm
Machine weight 4,700 kg
Tooling weight 250 kg
