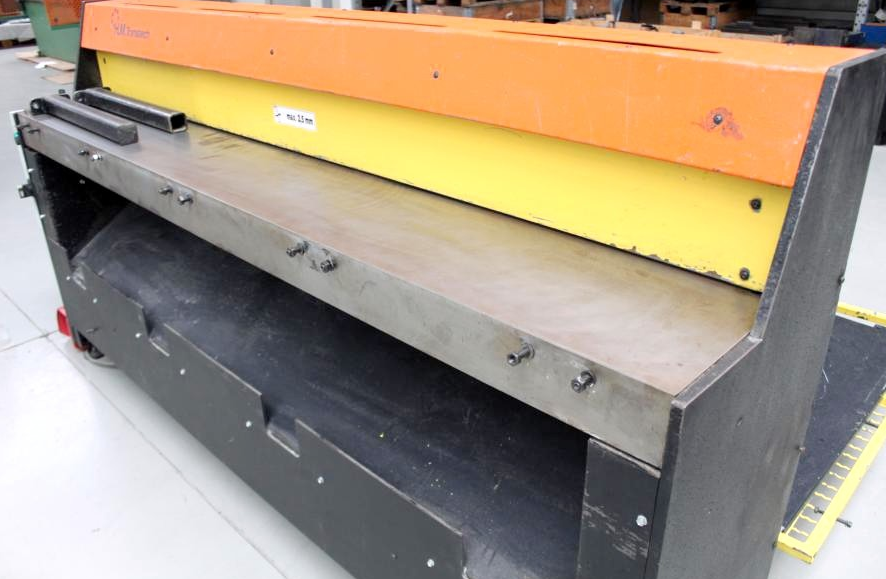

HM MLS 20/20

Sheet Width: 2025 mm
Plate Thickness: 2.0 mm
Thickness at Stainless Steel: 1.0 mm
Blade Length: 2110 mm
Number of Strokes: 34 strokes/min
Back Stop Adjustable: max. 640 mm
Cutting Angle: 1.5°
Work Height Max.: 885 mm
Control: Conventional
Engine Output: 5.0 kW
Weight: 1000 kg
Machine Size (L x W x H): 2450 x 1450 x 1200 mm

Electro-mechanical sheet metal shears
Heavy drive motor
Manual back stop with analog position display
Adjustment range max. 640 mm
Adjustment at the back via handwheel
1x table side stop
2x front support arms
1x freely movable foot switch
Control cabinet left
Rear safety device (grid housing)
Pneumatic sheet holding device for thin sheet metal cuts
