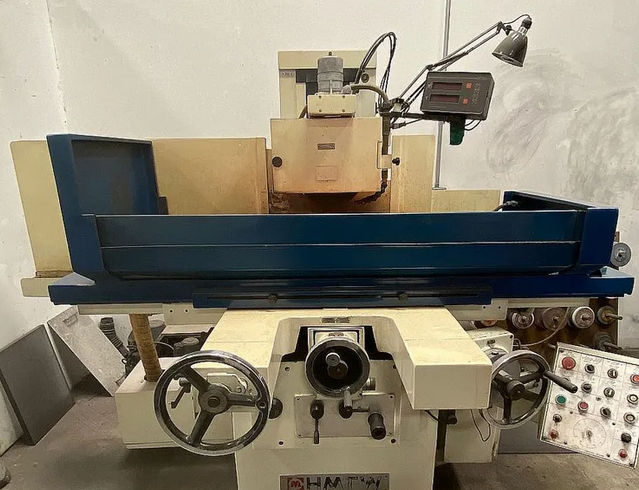

HMTW HZ-1624

Table size: 16" x 24"
Table travel (longitudinal): 29.5"
Table travel (cross): 16.5"
Distance spindle center to table: 4.9" – 19.7"
Maximum table load: 660 lb
Longitudinal table speeds: 1.6 – 32 FPM
Cross feed manual per graduation: 0.0005"
Cross feed manual per revolution: 0.25"
Cross feed automatic: 0.02" – 0.8"
Down feed manual per revolution: 0.0001"
Down feed automatic incremental: 0.0001" – 0.0015"
Grinding wheel dimensions: 14" x 1.6" x 5" bore
Machine dimensions: 100" x 89" x 89"
Machine weight: 6500 lb

Digital readout
Fine pole electromagnetic chuck
Over-the-wheel dresser
Hydraulic system
Coolant system
