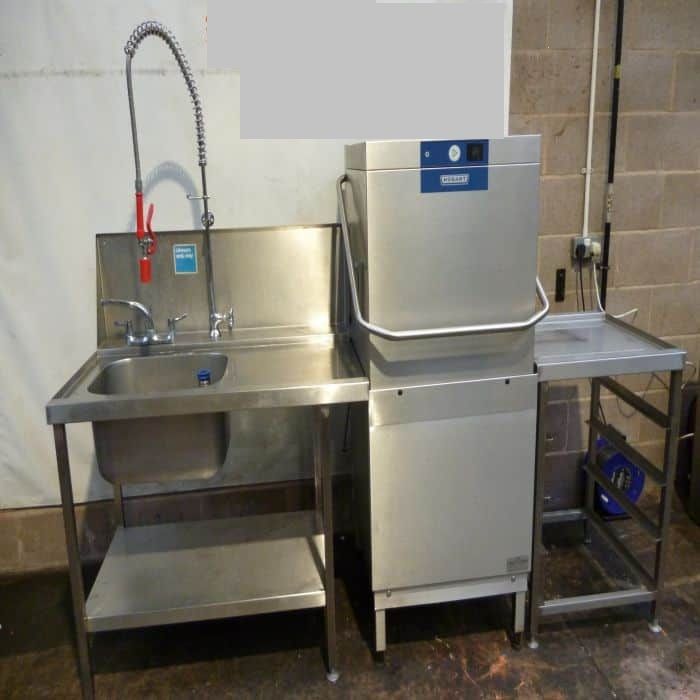

Hobart AMXSW-10B

Hood Pass Thru Dishwasher Station with Inbuilt Softener (3 Phase)

Four wash cycles: 60, 90, 360 seconds and continuous
Up to 60 racks (1080 plates) per hour (500 x 500mm basket – 18 plates)
Integral fitted drain pump – allows quick and easy emptying and refilling
Built in water softner
WRAS approved
Fine filter system – genius-x
Wide angle nozzle fan
Single button control – smartronic
Remaining time indicator
Hood design – easy-lift
Rinse aid dispenser
Detergent dispenser
Heat element – ecotherm
Rinse pump – accurinse
Strainer control proof
Hood concept – e-store
Minimum humidity release
Refill signal
Filter obstruction sensor
Machine care – intensive
Made in Germany

Technical
Load Height: 440mm
Wash tank capacity: 23 litres
Wash temp: 60°C
Rinse temp: 85°C
Water Consumption/cycle: 2.0 litres
Water Pressure: Cold or hot feed, 0.5 – 10.0 Bar
Sound Level: 63db
Electric: 3 phase 7.1kW, 16amp per phase.
Overall dimensions: H1510 (1995mm high open) x W635 x D635mm
Weight: 101kg
