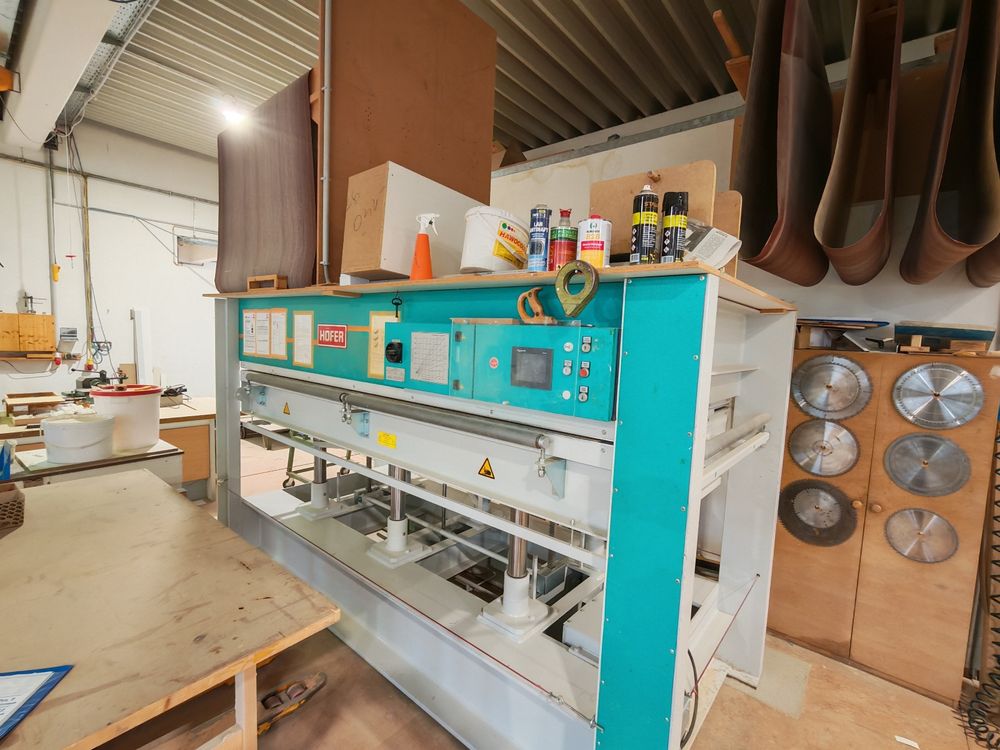

Hofer H 120 S

Used machine
Features and technical data:
- Clear operating elements
- Ideal working height
- Large opening
- Full 4-sided passage
- Push-button control
- Stop button
- Safety tether - Emergency stop at any position
- Timer with acoustic signal
- Automatic pressure switching
- Automatic temperature control
- Stepless stroke limitation
- Heavy-duty rack and pinion compensation
- Energy-saving mode as standard
- Switchable side cylinders
- Total pressing force: 120 tons
- Plate dimensions: 3000 x 1350 mm
- Number of cylinders: 6
- Piston diameter: 85 mm
- Max. opening/stroke: 400 mm
- Closing time: approx. 16 seconds
- Heating time to 80°C (from room temperature): approx. 14 minutes
- Maximum permissible operating temperature: 140°C °C
- Total connected load: 20.1 kW
- Hydraulic power: 1.21 kW
- Fuse rating: 35 A
- Dimensions: 3500 x 1610 x 2000 mm
- Total weight: 6200 kg
