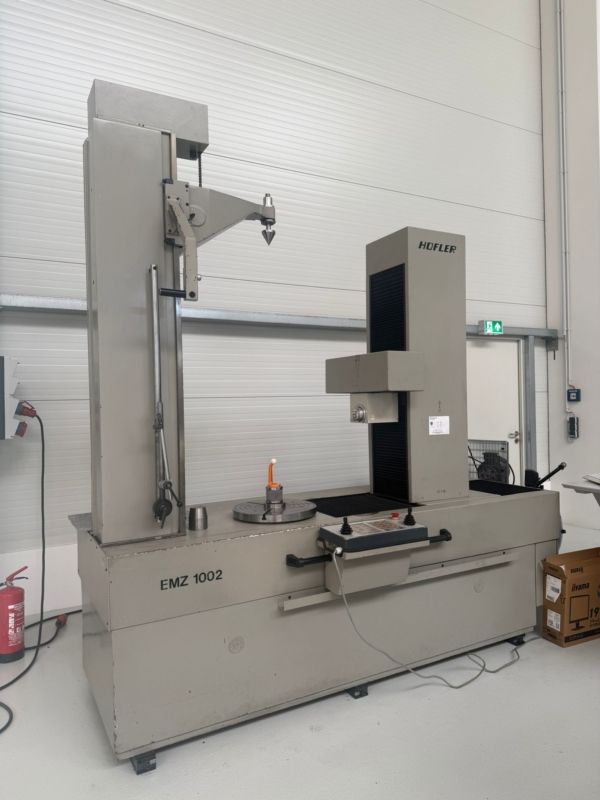

Hofler EMZ 1002

X Axis Travel: 230 mm
Y Axis Travel: 530 mm
Z Axis Travel: 750 mm
Table Tip Diameter: 35 mm
Tip Height Above Table: 75 mm
Counterholder Tip Diameter: 50 mm
Counterholder Tip Stroke: 40 mm
Minimum Center-to-Center Distance: 20 mm
Minimum Measuring Height Above Table: 50 mm
Maximum Measuring Height Above Table: 800 mm
Table Diameter: 500 mm
Base Circle Diameter: 0–1000 mm
Maximum Rolling Path: ±115 mm
Maximum Workpiece Diameter: 1000 mm
Maximum Workpiece Weight: 2000 kg
Software: Windows 11

Equipment
Bevel Gear Software (for Metrotek Installations)
Machine Calibrated According to DAKKS on November 19, 2017
