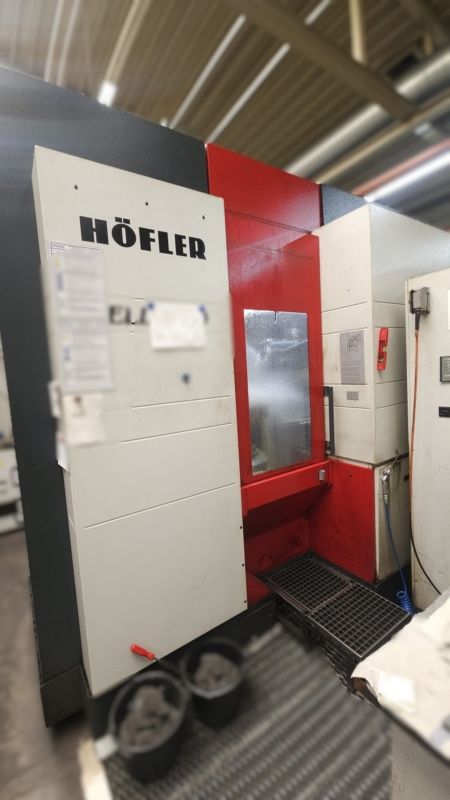

Hofler Helix 700 Variable Speed Gear Grinding Machine

Tip circle diameter max. 700 mm
Root circle diameter min. 50 mm
Height of profile max. 35 mm
Number of spindle speeds 0 - 5400 min⁻¹
Table load capacity max. 500 kg
Overall size 370 x 220 x 300 cm
Total weight, approx. 15000 kg
Number of working hours 94082 h

BWO control system
All axes CNC controlled
Oil mist extraction
Coolant cleaning system with cooling unit
Dittel balancing unit

Grinding wheels Ø400mm included
Grinding wheel flanges
1 diamond dressing roller Ø160mm
Counterholder tip

Control cabinet size 70 x 280 x 220 cm
Machine size 220 x 370 x 300 cm
Coolant system size 170 x 240 x 250 cm
