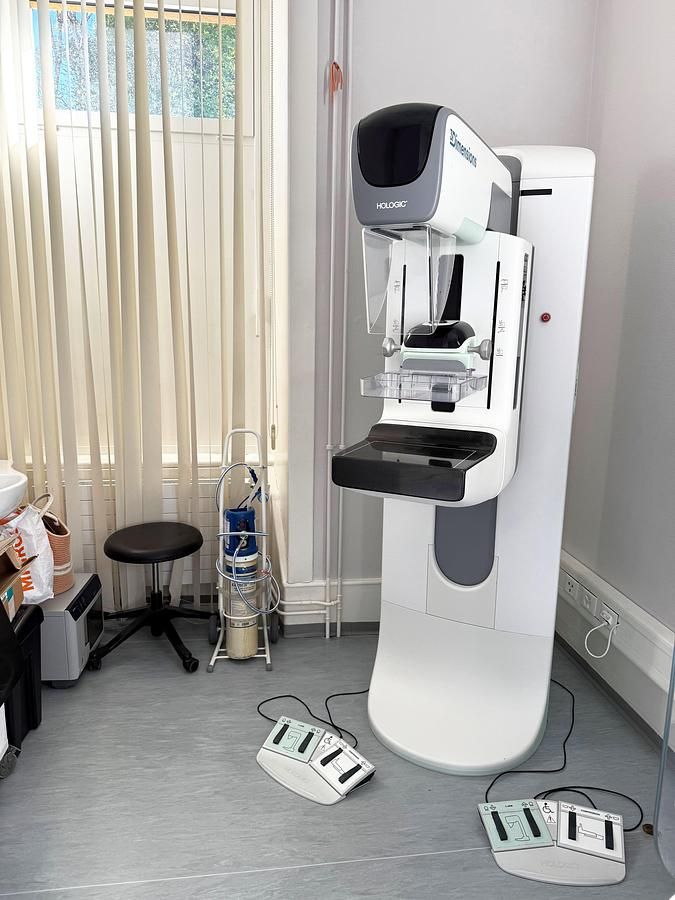

Hologic 3Dimensions 2D AWS 9000

HOLOGIC 3D 2D MAMMOGRAPH AWS 9000
with amorphous selenium detector

Technical details and configurations
STATE
Generator
• Power: 7.0 kW, 200 mA at 35 kV
• Maximum power: 9.0 kW
• kV range: 20 kV to 39 kV in 1 kV increments
• mAs range: 3.0 mAs to 400 mAs
• mA range:
10 mA to 200 mA, large fireplace
10 mA to 50 mA, small focus

Tube
• Anode: Rotating tungsten
• Anode type: Bi-angular
• Rotation: 9500 rpm)
• Angle: 16º (large beam), 10º (small beam)
• Thermal capacity: 300,000 HU (222 kJ)
• Focus: 0.1 (small), 0.3 (large) according to IEC
• Filtration: 0.050 mm Rhodium (Rh), 0.050 mm Silver (Ag),
0.7mm Aluminum (Al)
• Window: Beryllium

Exposure
• 1.2 mGy for ACR Phantom: Conventional mode
• 1.4 mGy for ACR Phantom: Tomo mode

Collimation
• Collimation mode: automatic or programmable
• Predefined:
24 cm x 29 cm
18 cm x 24 cm
15 cm x 15 cm
10 cm x 10 cm
7.0 cm x 8.5 cm

C-shaped arms
• Vertical movement: 71 cm to 142 cm, motorized
• Rotation: +195º to -155º
• SID: 70 cm
• Face protection: can be folded down or retracted by pivoting

Compression mode (user-selected)
• Pre-compression: 70 to 134 Newtons, motorized
• Compression: 89 to 178 Newtons, motorized
• Dual compression: First, set aside with pre-compression,
increasing step-by-step compression with
each activation until full compression is achieved
• Manual compression: 300 N maximum
• Compression paddle tilt: fixed or elastic

Enlargement : Factor 1.5 or 1.8

Power supply
• Supply voltage: 200/208/220/230/240 VAC nominal ± 10%
• Input current: 40 A single-phase or min. 3 x 25 A
with additional transformer
4 A paused, max. 65 A 5 sec.

Standard component
• “Screening” compression palette:
24 x 29 cm
18 x 24 cm
Special palette for small breasts
• Extension pallet: 10cm pallet
• Accessories: Face protection
Enlargement table
2 dual-function control pedals

Digital receiver
• Type: TFT detector, direct digital conversation, 24x29 cm
• Technology: Amorphous Selenium
• Resolution: 70μm, 3328x4096 pixels, 14-bit
• Anti-diffusion grill: Self-retracting for expansion

Hologic Dimensions AWS 9000
AWS - Workstation Acquisition
• Processor/CPU: Intel Multi-Core
• RAM: 32 GB
• Hard drive: 1 TB
• Archiving: DVD +/- R/W
• Display monitor: 2MP, medical monitor with DICOM presets
• User monitor: 1.2MP LCD touchscreen monitor
• Operating system: WIN 10
• DICOM service classes: Worklist, Storage,
Storage Commitment, Query/Retrieve,
• IHE Profile: Scheduled Workflow, Patient Information Reconciliation
and Mammography Image
• User interface: Keyboard, Touchpad, Mouse
• Custom height adjustment (84-114cm, with login)
• Backup power supply: 230V UPS

Hologic Paddle Rack
• Storage: 2 to 3 compression pallets
• Dimensions: lxdxh = 92 x 10 x 18 cm
• Material: Aluminium with RAL 1013 coating (pearl white)
with anti-static inner lining

9kVA transformer
• DRUE4400, 3AC400V+N / AC230V
• For connection with 3x 25A
