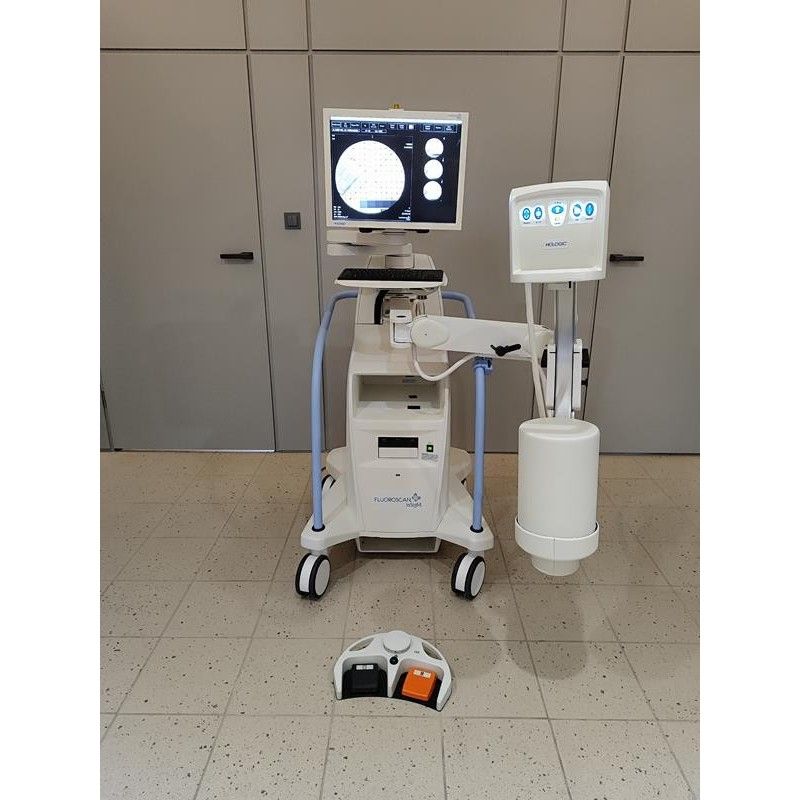

Hologic InSight
EUROPE (Central and Eastern)
X-Ray & Imaging Specifications
X-Ray Source: Grounded tungsten anode tube with a 7.5 W high-frequency generator.
Focal Spot Size: 0.045 mm, enabling ultra-fine detail imaging.
Tube Range: 40 to 75 kVp with a current range of 0.020 to 0.100 mA.
Image Receptor: Dual-mode 6-inch (15 cm) and 4-inch (10 cm) high-sensitivity Cesium Iodide image intensifier.
Image Matrix: 1k x 1k high-definition matrix.
Acquisition Rates: 30 fps for standard imaging and 25 fps for Cine (digital) recording
Display & Software
Monitor: 24-inch HD color touchscreen (1920 x 1200 resolution)
with a 178° viewing angle.
MegaView™ Technology: Allows for instant image magnification of
up to 20% via touchscreen or foot pedal.
Operating System: Typically runs on Windows 7 Professional
(older units may use Windows XP).
Connectivity: DICOM 3.0 compliant (store, send, print, worklist); includes Ethernet and optional wireless connectivity.
Storage: Solid State Drive (SSD) capable of storing up to 10,000 total images
