Holweg RS-26 Servotech

Condition Used (visible in production)
Type of produced bags flat satchel bags with or without window
Undwinder type DHS | Max: width 1100 mm
Max. reel diameter 1270 mm
Paper Thickness 25 g/m up to 80 g/m (is possible to work with 125 g/m depending on the paper quality)
Cut off length (min-max) with 2 tweezers: 410 mm – 760 mm | with 4 tweezers: 220 mm – 400 mm
Bag length (min-max) min 70 mm – max 380 mm
Gussets (min-max) 12 mm – 80 mm
Standard tab 13,3 mm or 18,3 mm
Maximum width of the paper web 1020 mm
System for adding a window of PP material: YES
Max diameter of Reel PP material: 800 mm
Speed with 4 tweezers: 600 bags/min
Speed with 2 tweezers: 300 bags/min, Max paper speed: 180 m/min
Hotmelt system YES
Printing machine in line Type IF-526:
Nr. colors: 4, (structure prepared for 6 colors), width 1100 mm, sleeves
Print repeat: min 290 mm – max 860 mm
Max. printing speed: 300 m/min

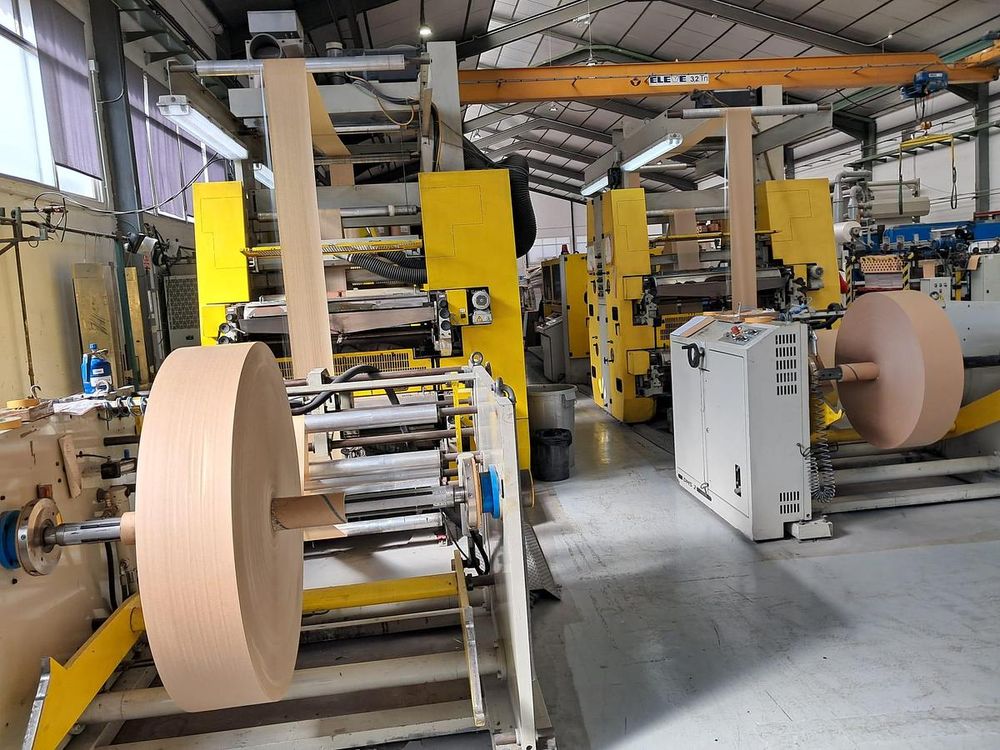

This RS 26 Servotech is an the allrouder flat satchel production line from Holweg.
It is equipped with the system for adding a window of PP material, and in-line flexo printer.
Visible in operation and available for sale.
