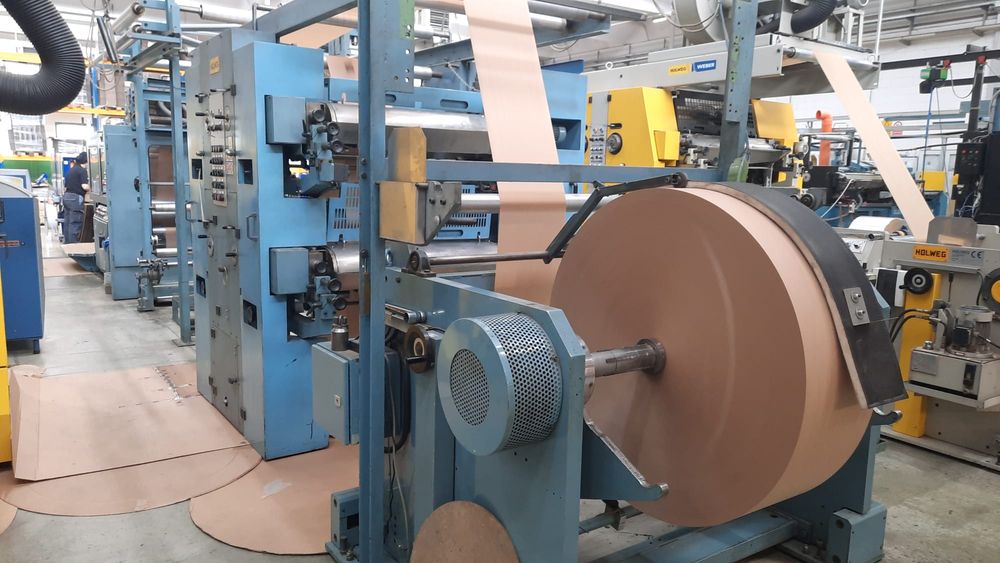

Holweg RS 26

With 4 color in line flexo printer IF526
Perforation type
For the production of flat or gusseted printed envelopes with/without window
Paper weight: from 30 to 80 gr
Through hole device (wicket bags): no
Min-max bag width: 70 – 380 mm
Min-max cutting length: 160 – 760 mm
Maximum tape width: 850 mm
Maximum reel weight: 800 kg
Min-max plug depth: 12 – 80 mm
Standard flap: 13,3-18,3 mm (both sizes)
Unwinder: single for paper and double for PP
Maximum reel diameter paper unwinder: 1200 mm
Hot glue system
Internal core: 70/76 mm
Including one forming plate

Reverse tube forming: no
Servomotor: no
Speed: 500 bags/min
Max speed: about 600 bags/min
DHS model unwinding system
Electricity: 3x400V-50Hz + neutral
Perforator : Z 52, 60, 64, 68, 76, 48
Pulley per bag sizes: 2 x 16 , 17, 19, 20, 21, 23, 26, 30, 32, 36, 38, 40, 42
Suction blades: 9, 10, 12, 16, 20
Hot glue broiler Nordson
Printing cylinders: 4 x 300, 4 x 320, 4 x 360, 4 x 380, 4 x 400, 5 x 420, 4 x 460, 4 x 520, 4 x 600, 4 x 640, 4 x 680, 4 x 760 mm
Gears: 2 x 160, 2 x 170, 2 x 190, 2 x 200, 2 x 210, 2 x 230, 2 x 260, 2 x 300, 2 x 320, 2 x 360, 2 x 380, 2 x 400, 2 x 420 mm
Visible in production
Immediately available
