Holweg RS2 (42GL) modified RS21 normal 1 channel- refurbished

For the production of flat bottom paper bags with or without gusset
In operation, available immediately
Machine was refurbished with new electrical parts, new 3 phase main motor with inverter, unwind station with new electrical brake system by Renova Italy with dancer roller

With 4 colors in line printer model IS 80 for max print with 800 mm
Printing sleeves: 4 x 220, 3 x 320, 1 x 370, 1 x 380, 4 x 400, 4 x 430, 4 x 440, 1 x 520, 3 x 520, 3 x 580, 6 x 660, 3 x 680 mm
Gears: 320 mm (4 printing + 2 machine gears), 340 mm (4 printing + 2 machine + 1 printer gear), 380 mm (4 printing + 2 machine + 1 printer gear), 440 mm (4 printing + 2 machine + 1 printer gear), 520 mm ( 4 printing + 1 machine gear), 580 mm (290): 4 printing + 2 machine + 1 printer gear, 680 mm (4 printing + 2 machine + 1 printer gear)
Forming plates: 1 x 90, 1 x 120, 1 x 140, 1 x 150, 1 x 170, 1 x 180, 1 x 200, 1 x 240, 1 x 300 mm.
Note: No gluing knives for different widths are included.
Printer shafts/ adapters : 4 shafts for the printer, suitable for the above printing sleeves.
Perforation type
Max unwinder diameter: 1200 mm
Pneumatic shaft for 70 mm
Max paper width: 900 mm
Min - max bag width: 70 - 340 mm (the owner produced only one size on this machine 140 mm width x 260 mm length)
Cut off length: 190 - 680 mm
Min - max bag length: 180 - 670 mm
Working speed: 400 - 800 bags/min (depending on the size)
Papers: from 30 to 70 gr

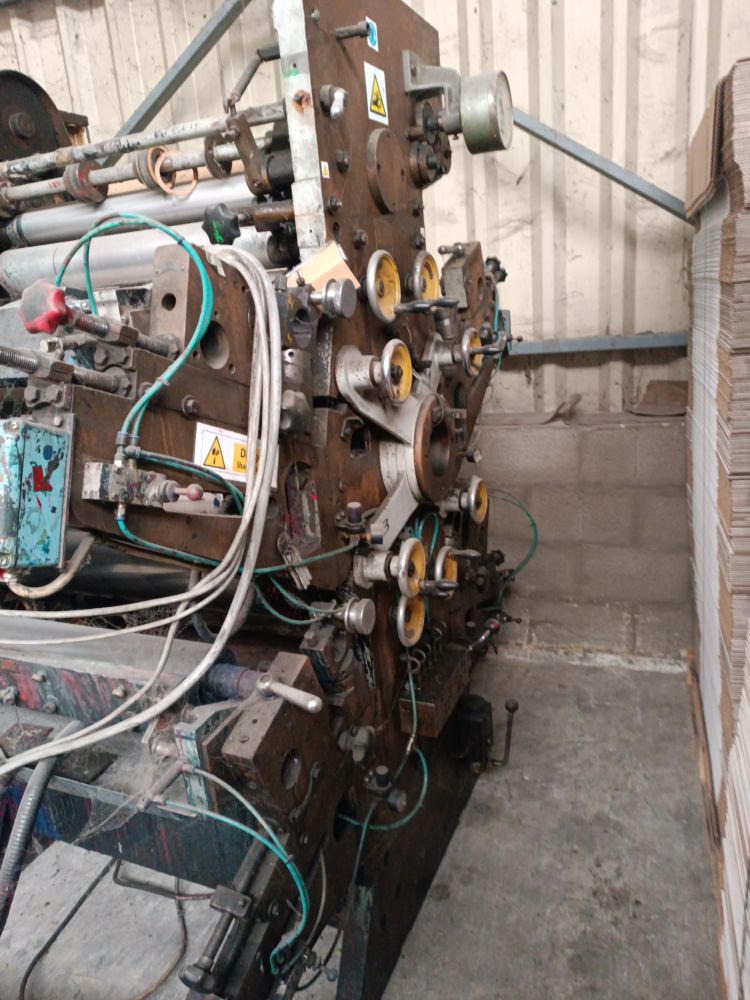

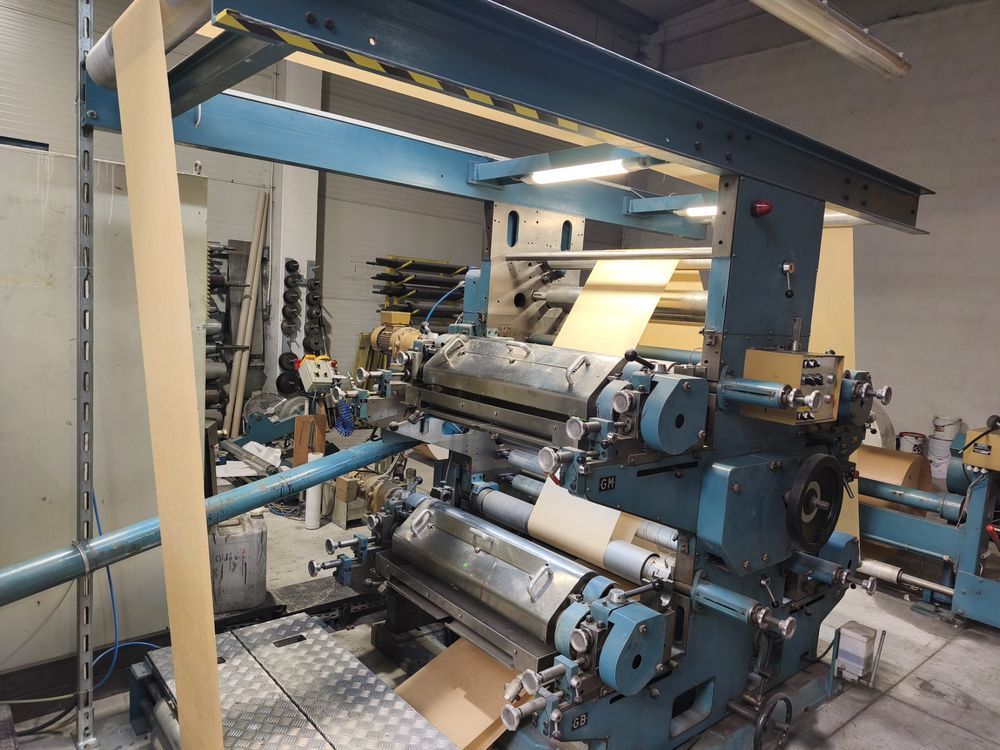

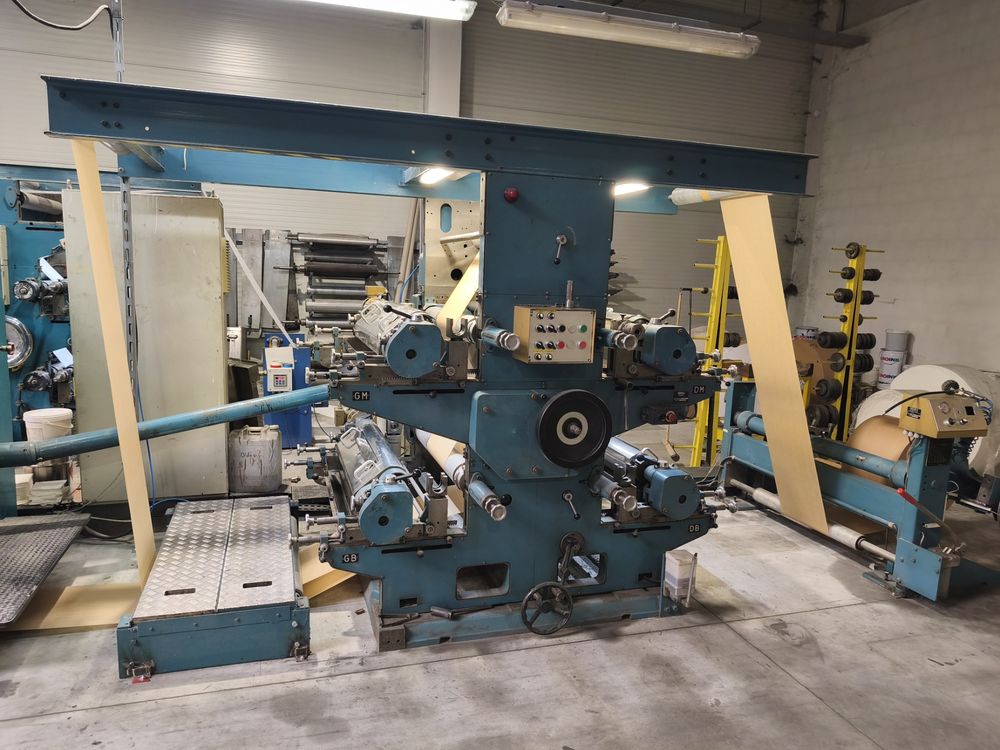

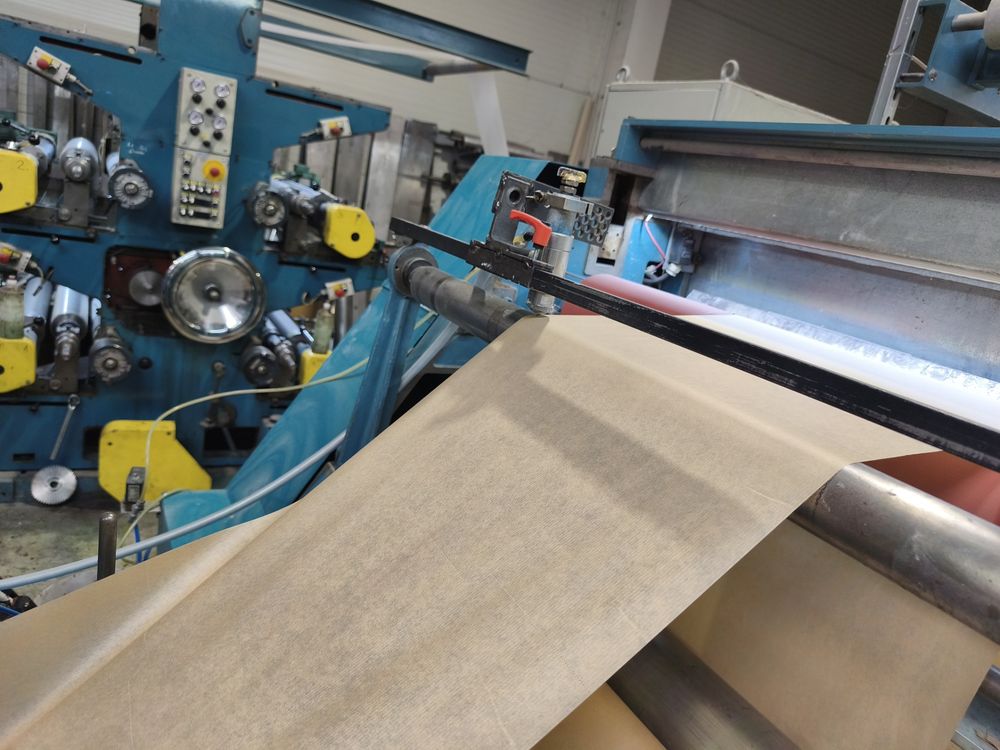

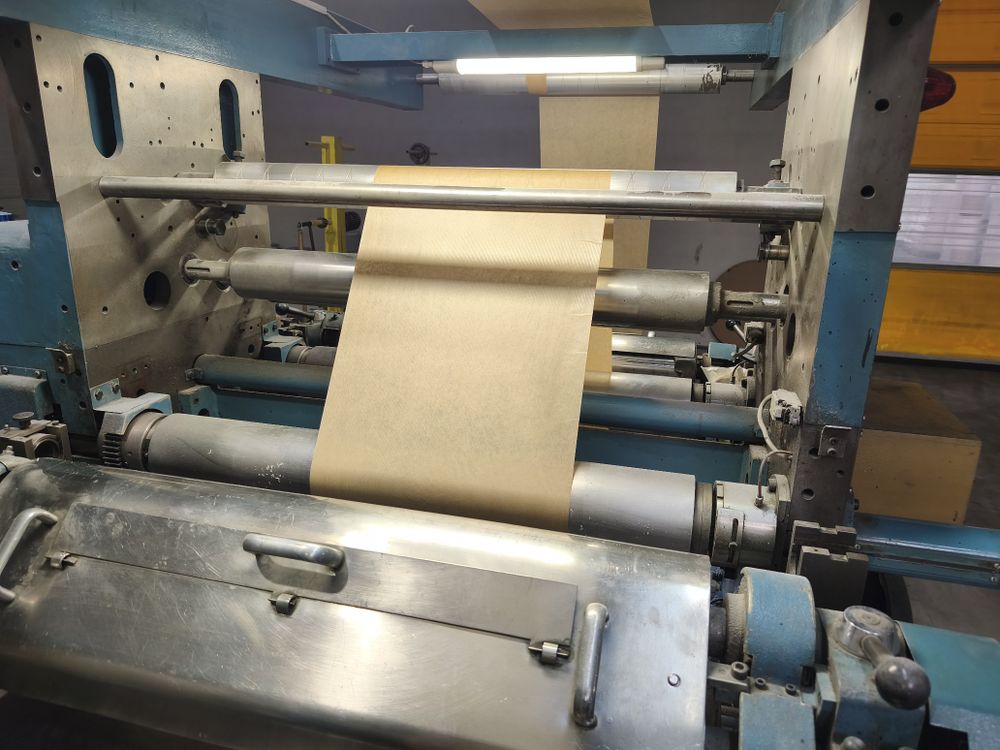

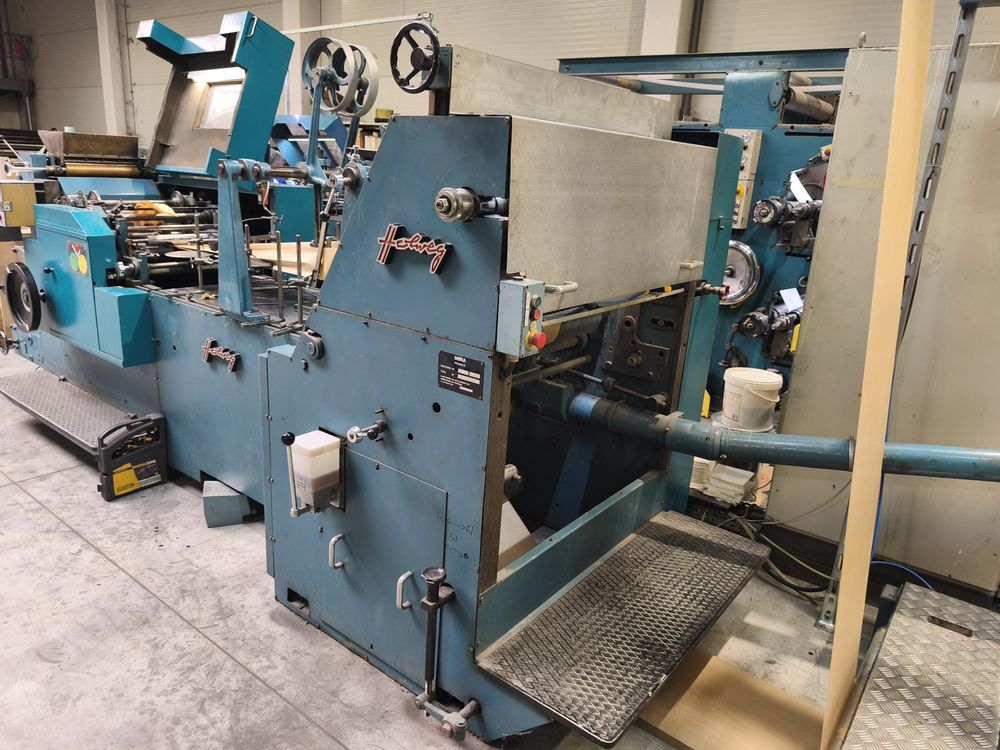

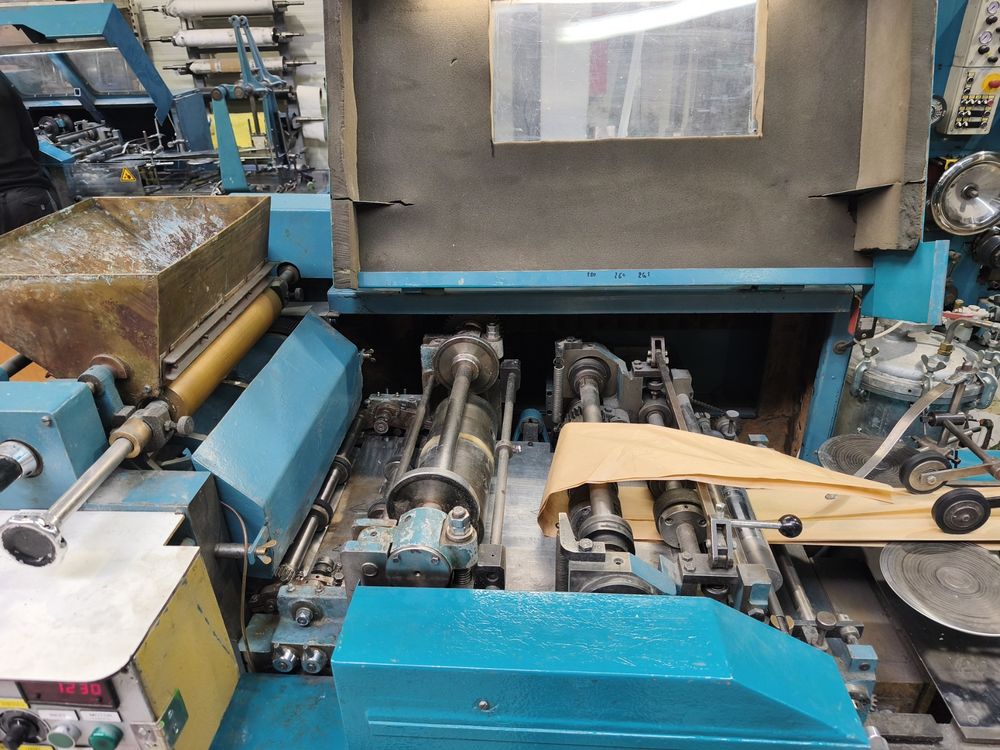

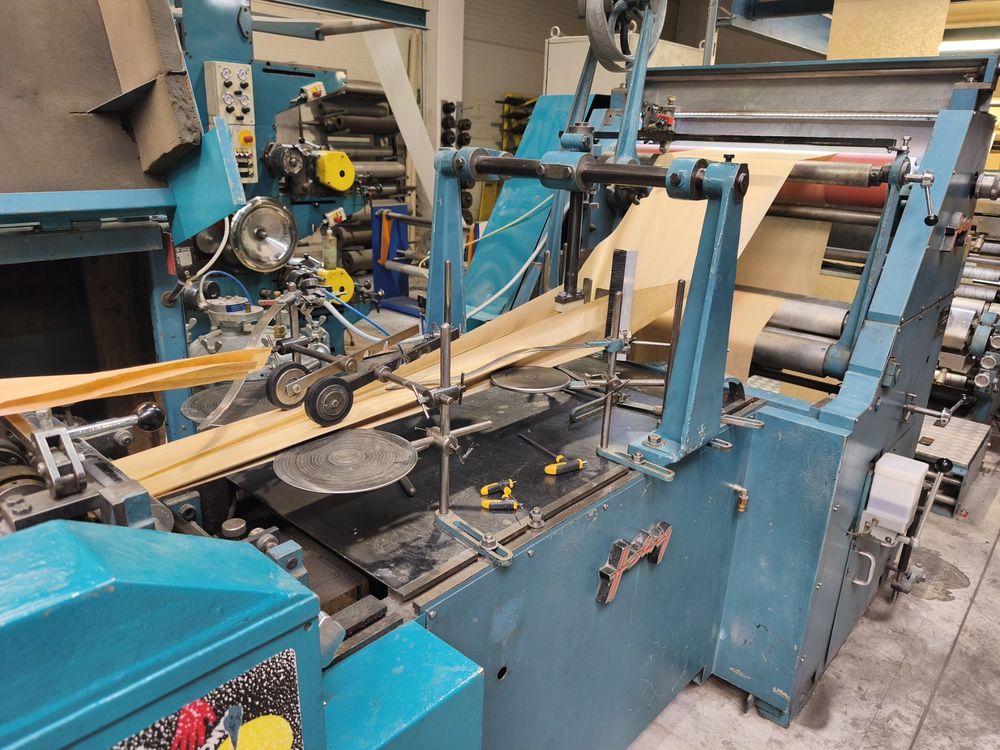

8 first photos Holweg ( ideos available upon request)

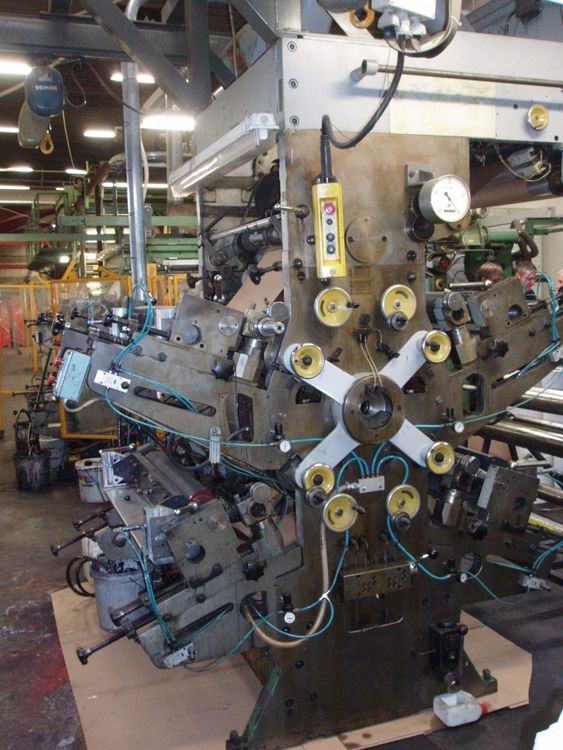

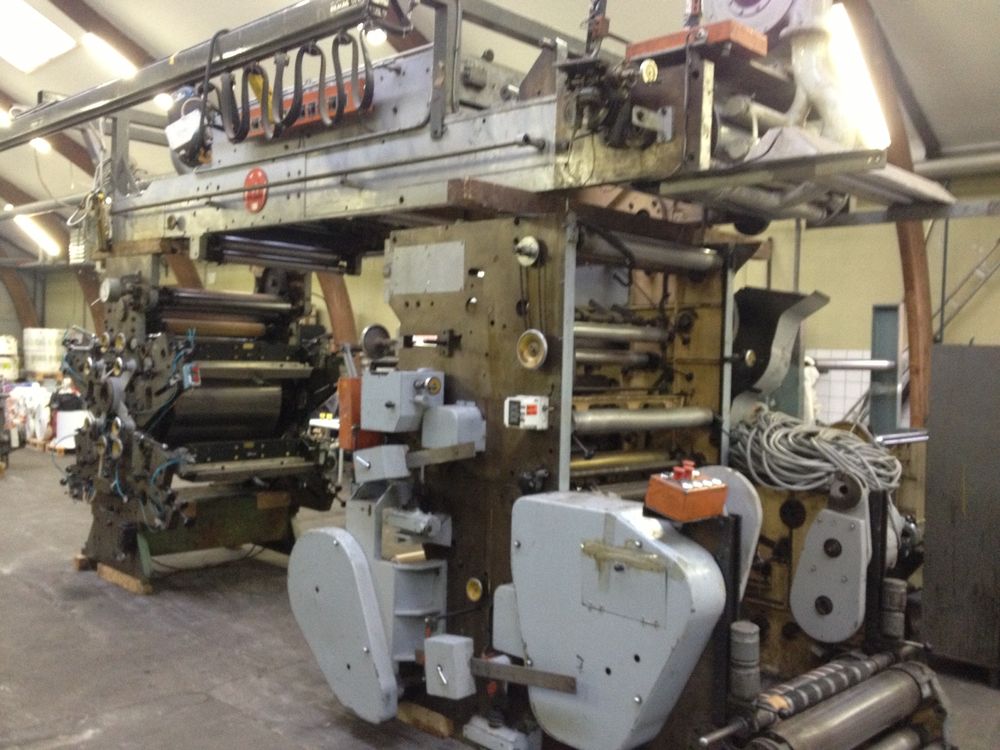

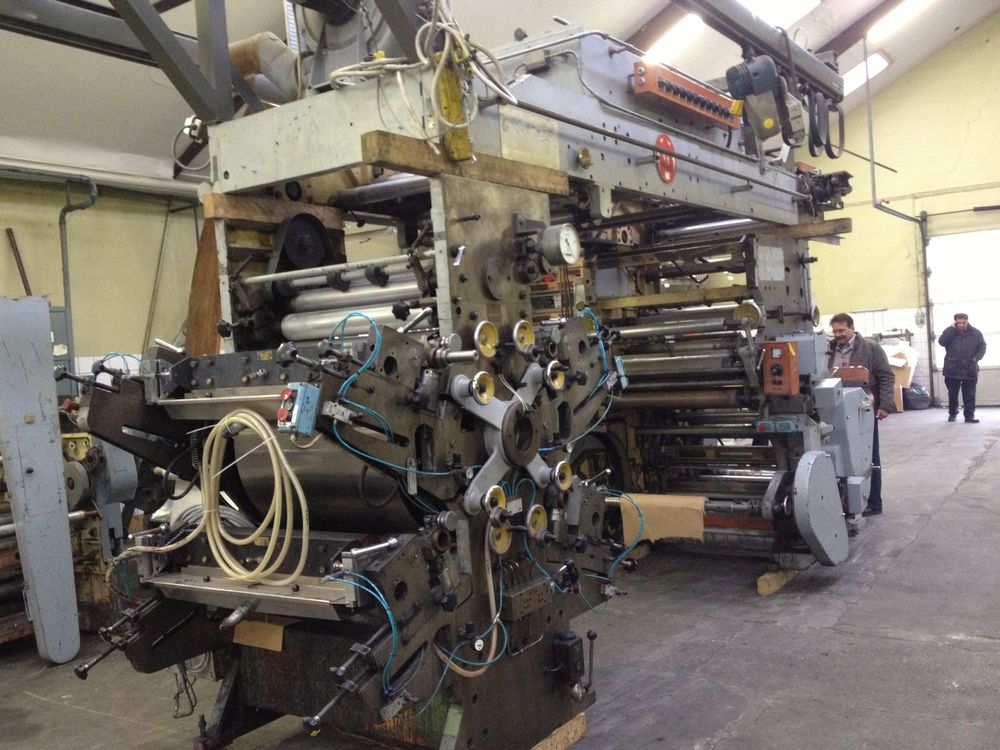

& other next photos W&H QMS92 print 4 col
