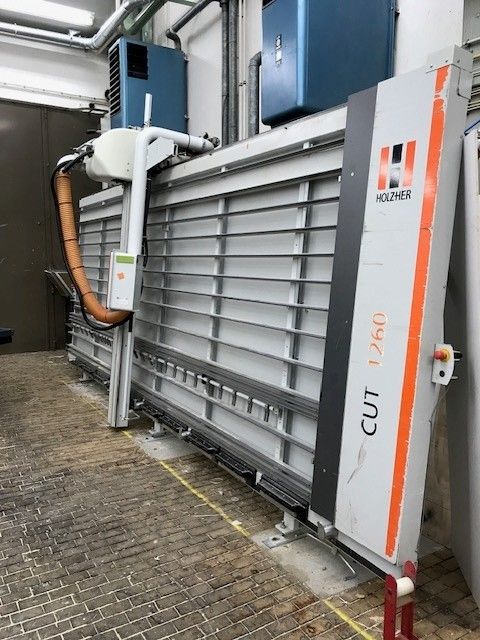

Holz-Her 1260

Cutting length 5300 mm
Cutting height 2200 mm
Vertical panel saw for cutting panel-shaped wood materials such as chipboard, MDF, veneer panels, multiplex, etc.

Base machine
Fully welded frame with extremely high rigidity
Precise guidance of the saw beam/saw unit for accurate cutting. Automatic feed for vertical and horizontal cutting. Cutting depth: max. 60 mm

Saw beam
Sturdy saw beam guided on precision guides. Pneumatic locking of the saw beam at the top and bottom. Electrically monitored during vertical cutting.

Saw unit
Smooth and ergonomic operation for plunging and retracting the saw unit.
The plunging lever can be folded down in the upper position for precise plunging of the saw unit.
Generously dimensioned levers allow for easy
pivoting. The housing cover opens the entire saw unit for easy tool changes, including the ProLock quick-action chuck.
Light cut: Riving knife can be retracted

Automatic functions
Automatic plunge, cut through, plunge out, and stop or Automatic plunge, cut through, plunge out, and return
Shortened return (selector switch)
The shortened return option of the saw beam avoids unnecessary travel of the saw unit (short workpiece rests on the right).
Speed control: continuously variable from 6 - 24 m/min
Cutting depth: max. 60 mm

Control panel
Efficient machine operation. Ergonomically positioned at eye level.

Lower workpiece support
Sturdy, wear-resistant stainless steel support.
Support up to the cutting line: narrow workpieces cannot tip over or fall through.

Extraction
Effective extraction with two connections: saw unit
Ø 120 mm, frame end Ø 100 mm (for TRK version)

Lifting roller transport system:
Manually raised and lowered rollers for easy and material-friendly panel transport.

Tape measure for horizontal cuts with three manual measurement indicators:
Absolute measurement from the lower workpiece support
Absolute measurement from the middle workpiece support
Series cuts from the top edge of the panel

Saw unit 4.0 kW, 5400 rpm, 400 V, 50 Hz
incl. pneumatic brake for horizontal cuts,
incl. carbide circular saw blade Ø 250 x 30 x 3.2 mm, 48 teeth, hollow crown tooth
TRK device according to CE guidelines SH 2200
(less than 2 mg particulate matter/m³ air) - required for all countries requiring CE certification

Pneumatic sliding grate
Continuous sliding grate across the entire length of the machine for stable workpiece support.
Automatic, pneumatically deflected during horizontal cuts.
Prevents the sliding grate from being cut during horizontal cuts.

Digital dimension display for horizontal cuts on the control panel including electrical fine adjustment
Display of:
Absolute dimension from the lower workpiece support
Off-set dimension from the middle workpiece support
Series cuts from the top edge of the panel
Super Cut plus scoring device for scoring the top layer of coated panels
