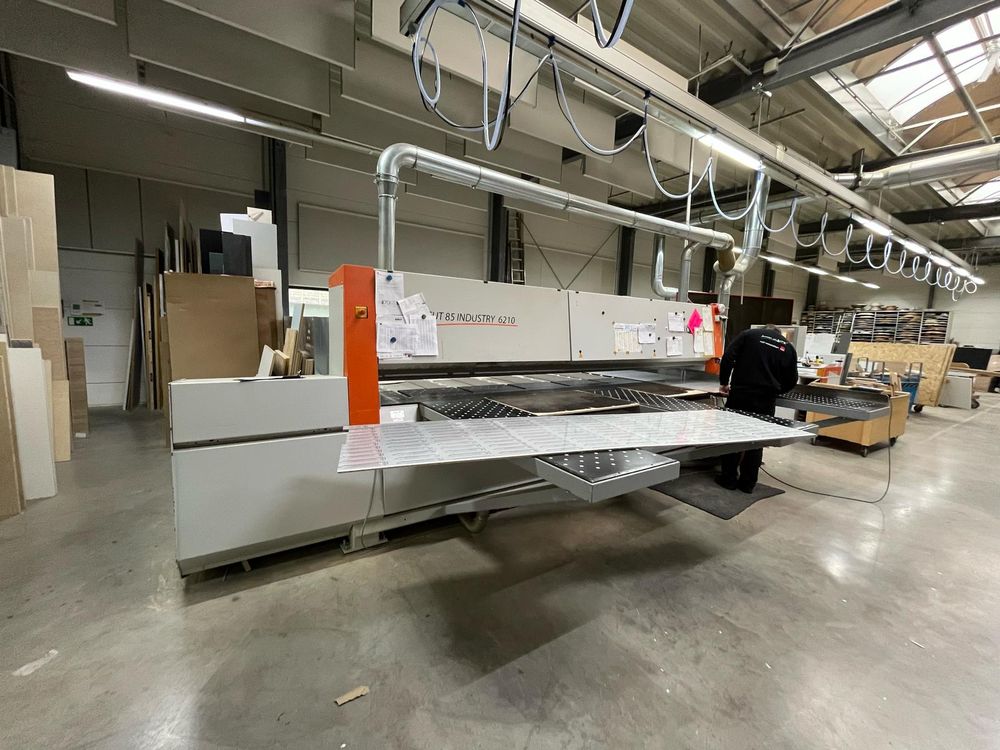

Holz-Her Cut 85 industry

Used machine
Right-hand stop design
Cutting length 4250 mm, cutting width 4250 mm, cutting height 85 mm
Saw blade diameter: Main saw 350 mm, scoring saw 180 mm ø
Pneumatic pressure beam, adjustable pressure
Compressed air consumption 32 L/min / 6 bar per cutting cycle
Switchable collet pressure, controlled from the control panel for sensitive panel materials.
Automatic cutting length limitation (saw unit detects the end of the workpiece).
Remaining cut device, collets retract into a recessed pressure beam.
Width stop with precise rack and pinion drive.
7 floating workpiece collets compensate for material tension.

Cutcontrol 2 control system with 15" TFT display and touchscreen
Diskettes and DVD drive
Control functions for direct cuts or optimized jobs
CP-OUT data import module (interface: customer-supplied)
Operational data acquisition for necessary machine maintenance.
EASY-Plan optimization software
Graphical user interface with real-time display
BOM data: Element number, position number, piece, length, width

Material data:
Material length / material width / material thickness
Available piece count
Rotatability (grain)
Material designation
Type number
Trimming
Unlimited entry of BOM data
Main saw: 11 kW, scoring saw: 2.2 kW
Grooving device with 2 groove height settings
Angle clamping device, left
2 air cushion tables with blower

Equipment:
Cut-out device
Manual scoring saw adjustment
CUTCONTROL 2 control system with 15" TFT display and touchscreen operation
Handheld control unit for remote machine control
TLP 2742 label printer
Laser guide light for cutting line detection
