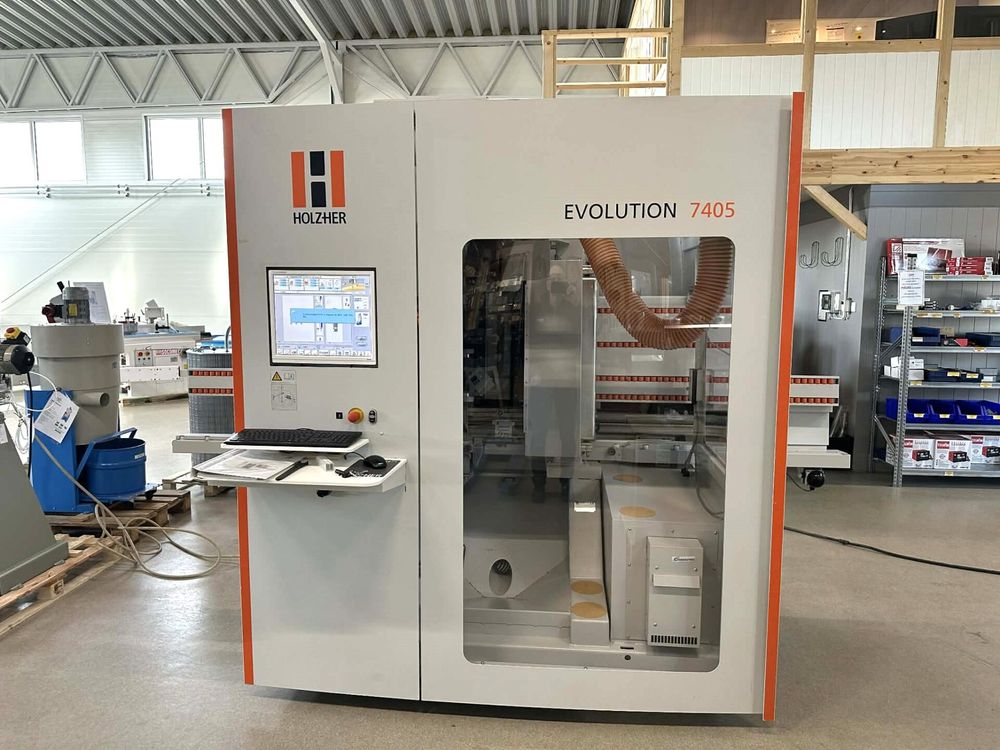

Holz-Her Evolution 7405 CNC undefined

Machining dimensions :
Max material thickness: 8 – 70 mm.
Vertical throughput (width): 1 200 mm.
Length: Unlimited (1500 mm without repositioning).
Minimum workpiece: about 200 x 70 mm.

Working dimensions (X, Y, Z)
Max disc size (without extra support):
X: 3200 mm
Y: 920 mm
Z: 70 mm

My record size:
X: 200 mm
Y: 70 mm
Z: 8 mm

Max processing
In X direction (without re-voltage):
Round milling/formatting (excl. milling radius): 1450 mm
Complete machining (scream, drill, milling sheet on board): 1300 mm

In Y-direction:
920 mm

Performance & Spider:
Spindle power: 7.5 kW (4e) / 6.5 kW (standard) / 10.3 kW (optional) HSK pickup.
Tool changer: 6-fold (standard of 4mat).
Speed: Variable, high-performing.
Vector speed: 68 m/min.

Functions & Equipment :
4-sided processing: Full formatting and edge profiling.
Drilling unit: Standard with milling spindle and drill head.
Vacuum system: Intelligent, automatic positioning of suction cups.
Control system: CAMPUS/NC Hops.

Requirements :
Floor area: Under 5 m2
