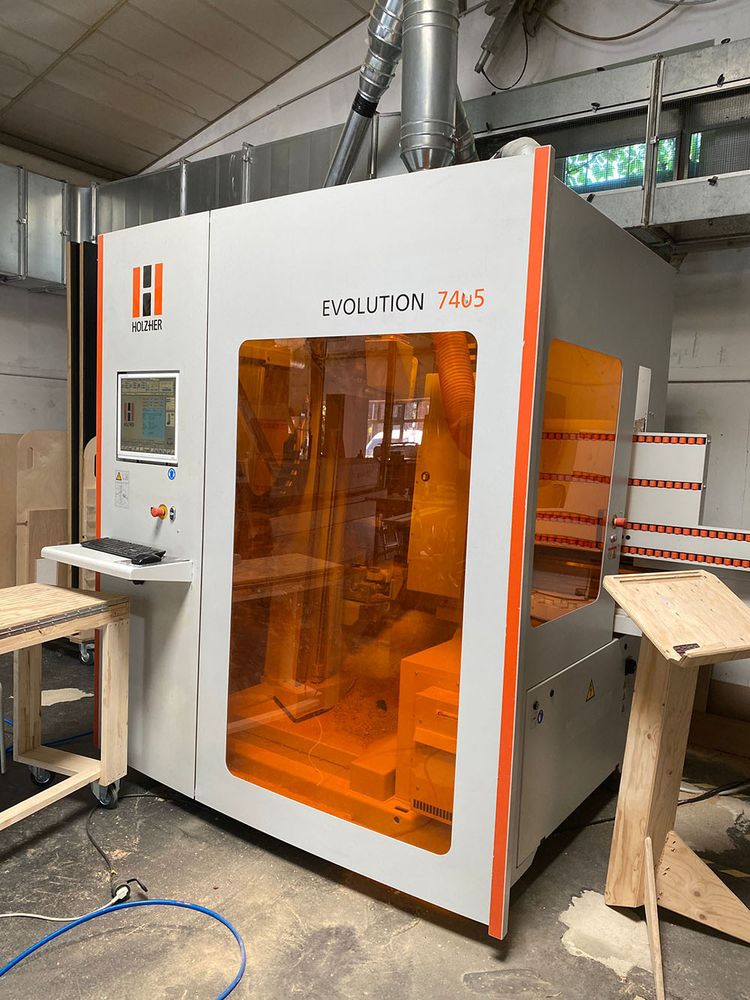

Holz-Her Evolution 7405

Used machine
Condition: Functionally tested

Equipment and technical specifications:
Processing length in X = 200 - 3200 mm
Max. travel without re-clamping: 1300 mm
In Y = 70 - 920 mm
Material thickness Z = 8 - 70 mm
With height-adjustable infeed roller conveyor for 4-sided milling / complete formatting

1 machining area with length stop
1 roller conveyor for supporting workpieces downwards
5 roller conveyors for material-protecting support of sheet material
1 movable support for small parts

With drilling unit 7883 / 15 spindles
9 vertical spindles, L-shaped arrangement, 5 in the X direction and 4 in the Y direction
32 mm pitch, max. drill diameter 35 mm
Total drill length 70 mm from the screw end
(depending on Panel thickness)
Spindle extension stroke 70 mm
6 horizontal spindles
2 double drilling spindles in X-direction
1 double drilling spindle in Y-direction
Drive power 1.7 kW
Integrated saw unit for sawing/grooving in X-direction

Milling unit 7830 10.3 kW HSK F 63
6-station tool changer 7887
LASER tool length measuring system
Automatic central lubrication - automatic lubrication according to defined lubrication intervals nfor all ball screws in X, Y, and Z directions
With 21.5" flat screen
With ECO vacuum system, single-circuit vacuum system 8 m³/h

- HOLZHER Cabinet Control Base
- HOLZHER Campus V6 - Single Evolution Software
