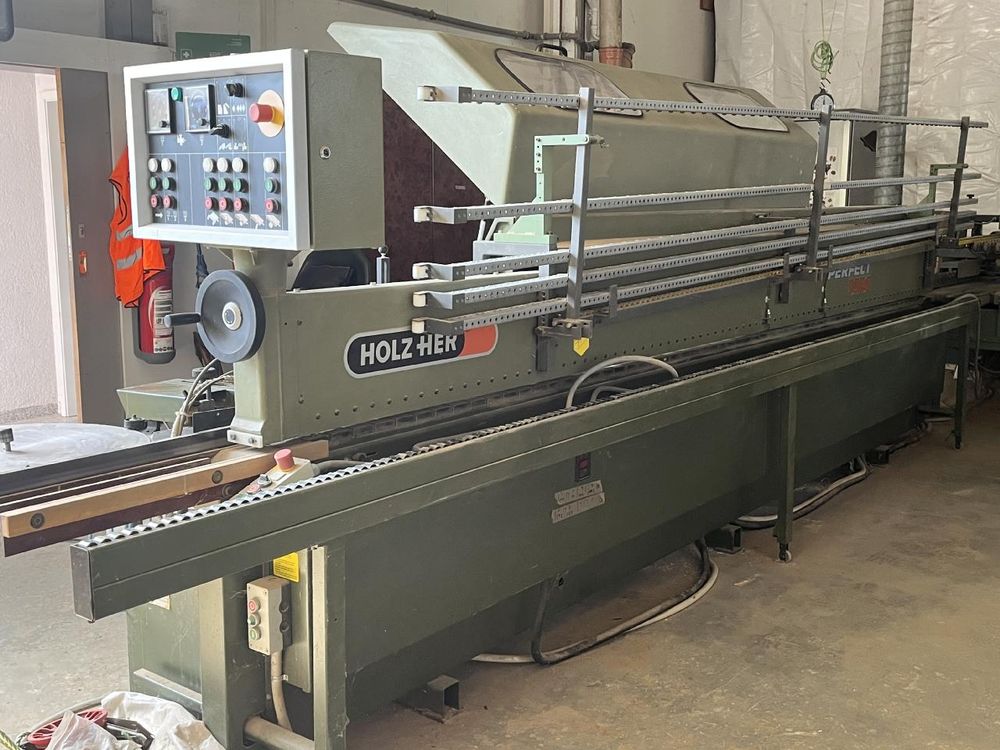

Holz-Her Perfect 1424 with Ligmatech ZHR 15

Used machine
Equipment and technical specifications:
Automatic edge feeder
Cartridge glue system
4-roll printing unit
Cross-cut saw unit
Flush trimming unit
Combination trimming unit: flush/bevel/radius
Radius scraper
Buffing unit

Edge band thickness 0.3 - 20 mm (depending on unit)
Edge band height max. 66 mm
Edge band length min. 200 mm
Feed rate 8/16 or 12/24 m/min
With LIGMATECH workpiece return system

The return line of this return system is located above the panel processing level.
The workpieces move back to the operator on an inclined plane.
Special features compared to the ZHR 0x models:
Automatic detection and rotation of parts from transverse to longitudinal
Automatic adjustment of the rotation speed to the workpiece length

Minimum and maximum workpiece dimensions
For longitudinal edge processing: 2200 x 1000
For transverse processing with subsequent rotation: 250 x 120/2200 x 800
Maximum workpiece thickness: 60 mm
