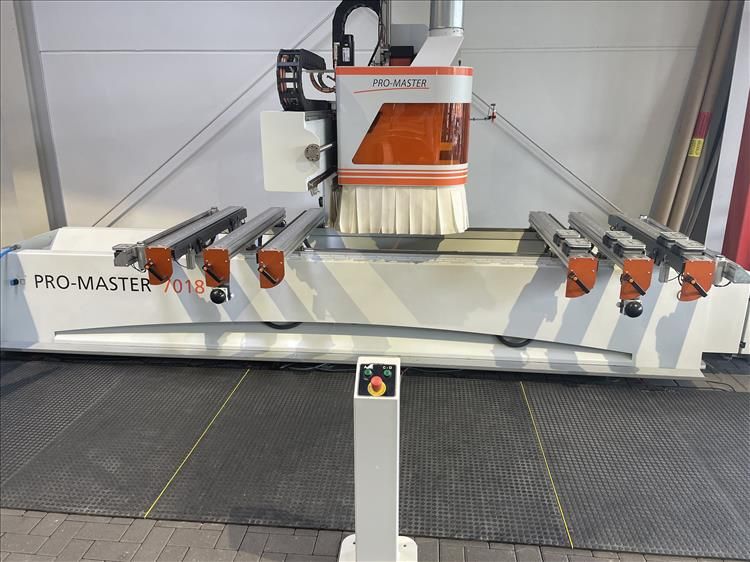

Holz-Her Pro Master 7018

Machining center used
Console machine,
pneumatic loading aids,
hardened, dust-protected prism guides,
single-arm mobile column,
helical rack drive (X-axis),
ball screws on the Y and Z axes,
control cabinet cooling with heat exchanger,
handheld control unit,
saw unit for grooving in the X direction,
moving disc tool changer,
incl. safety fence,
incl. step mats,
pendulum operation possible,
laser for positioning the suction cups

Technical specifications :
Processing length (milling radius) X: 3,425 mm,
Processing length (milling radius) Y: 1,287 mm,
max. travel X: 3,747 mm,
max. travel Y: 1,554 mm,
max. Z travel: 325 mm,
Max. travel speed X: 70 m/min.,
Max. travel speed Y: 70 m/min.,
Max. travel speed Z: 20 m/min.,
Machine control software: CAMPUS HOPS,
Drill spindle mount: M10, 11 mm fit,
Number of vertical drill spindles: 10,
Number of horizontal double drill spindles in X direction: 2,
Number of consoles: 6,
Number of tools in the tool changer: 12,
Extraction connection Ø: 200 mm
