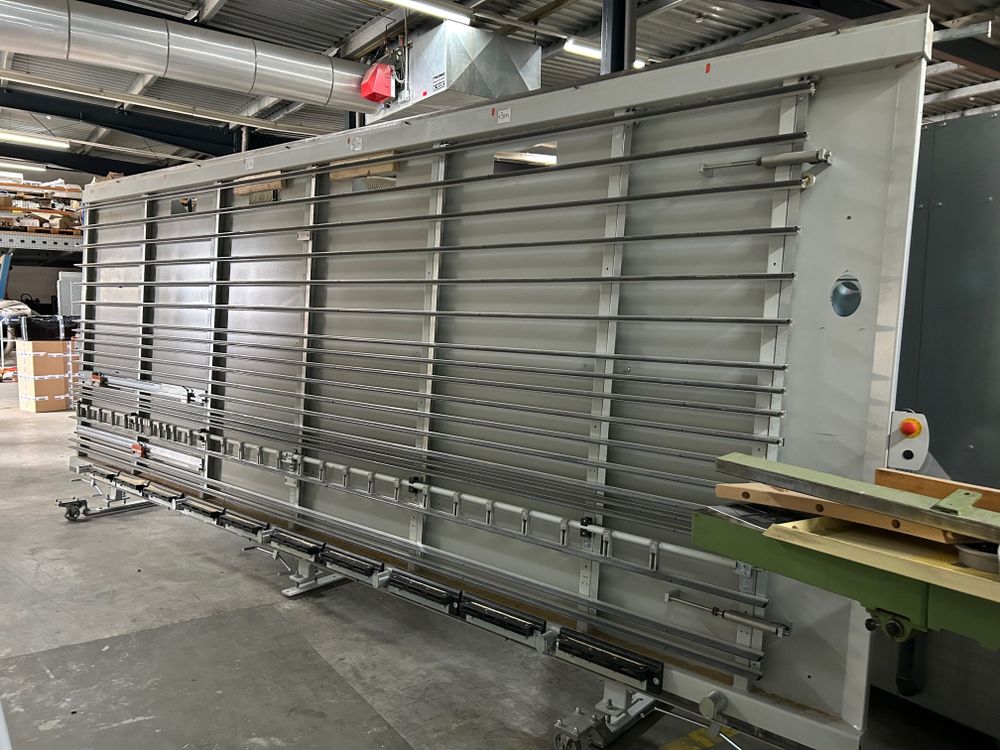

Holz-Her Sector 1260 automatic

Used machine
Cutting length 5300 mm
Cutting height 2200 mm
Vertical panel saw for cutting sheet-like wood-based materials such as chipboard, MDF, veneer panels, plywood, etc.

Basic machine
Fully welded frame with extremely high rigidity
Precise guidance of the saw beam/saw unit for accurate cuts. Automatic feed for vertical and horizontal cuts. Cutting depth: Max. 60 mm

Saw beam
Stable saw beam guided on precision guides. Pneumatic locking of the saw beam at the top and bottom. Electrically monitored during vertical cuts.

Saw unit
Smooth and ergonomic operation for raising and lowering the saw unit.
The plunge lever can be folded down in the upper position for precise plunge insertion of the saw unit.
Generously sized levers for easy swiveling.
The housing cover opens the entire saw unit for easy tool changes, including the ProLock quick-release chuck.
Light cutout: Riving knife can be retracted.

Automatic functions:
Automatic plunge cut, through cut, plunge cut, and stop or Automatic plunge cut, through cut, plunge cut, and return

Reduced return stroke (selector switch)
The reduced return stroke of the saw beam avoids unnecessary travel of the saw unit (short workpieces rest on the right).
Speed ​​control: Infinitely variable from 6–24 m/min
Cutting depth: max. 60 mm

Control panel: Efficient machine operation. Ergonomically positioned at eye level.
Lower workpiece support: Stable, wear-resistant stainless steel support. Support up to the cutting line: narrow workpieces cannot tip over or fall through.
Dust extraction: Effective dust extraction with two connections: saw unit
Ø 120 mm, frame end Ø 100 mm (with TRK version)
Lift roller transport system: Manually liftable and lowerable rollers for easy and gentle panel transport.

Measuring tape for displaying dimensions for horizontal cuts with three manual measurement displays:
Absolute dimension from the lower workpiece support
Absolute dimension from the middle workpiece support
Series cuts from the top edge of the panel

Power package
The package consists of the following options:
1. TRK dust extraction system
2. SuperCut scoring unit
3. Vertical digital display
4. Infinitely variable speed control

Saw unit 7.0 kW, 1100–5500 rpm, 400 V, 50 Hz incl. carbide circular saw blade Ø 250 x 30 x 3.2 mm, 48 teeth, hollow roof tooth
TRK system in accordance with CE Directive SH 2200
(less than 2 mg fine dust/m³ air) – required for all countries subject to CE marking (dust extraction system to be provided by the customer)

Pneumatic sliding grid
Continuous sliding grid over the entire machine length for stable workpiece support.
Automatic, pneumatically deflecting horizontal cuts.
Prevents the sliding grid from being cut during horizontal cuts.
Digital dimension display for horizontal cuts on the control panel

Including electric fine adjustment
Display of:
Absolute dimension from the lower workpiece support
OFF-set dimension from the middle workpiece support
Repeat cuts from the top edge of the panel
Saw blade calculation (saw blade thickness individually programmable)

When the unit is fixed to the beam via the brake, it can be fine-tuned to within 1/10 mm for the horizontal cut at the touch of a button on the control panel
Manual length stop with digital dimension display
Additional manual length stop for vertical cuts
3 adjustable stop points in the saw beam for recurring horizontal cuts via stop cams

Narrow section support
prevents workpieces from tipping
between the slats above the middle workpiece support
Strip stop for recurring horizontal cuts
