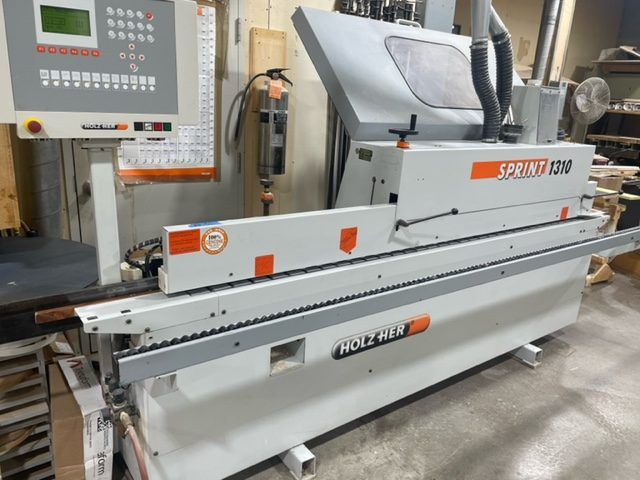

Holz-Her Sprint 1310

-Machine length 12 feet 6 inches.
-Maximum capacity 8 mm solid wood strip.
-Capacity 3 mm PVC
-Max speed: 35 feet/minute.
-Program logic control

Ability:
* Panel thickness: minimum 6mm / maximum 45mm
* Minimum panel width: 60mm
* Minimum panel length: 180mm
* Edge thickness: 3mm in roll / 8 mm pre-cut strips
* Drive speed: 12m/min

Workstation:
* Control panel
* Cartridge glue station
* Guillotine for 3mm pre-cut
* 3 roller pressure station
* End cutting 2 tilting saws 0? ~ 10? for chamfer cutting
* Fine trimming tilting 0? ~ 15?
* Scrapers radius
* Polishing and cleaning brush
* Protective cabin
Notes: automatic positioning of workstations from 0.5 mm to 3 mm by the control panel.

Additional Specifications:
* Included: Electric transformer for operation on 600 Volts
* Overall space: 3860 mm long X 1245 mm deep X 1940 mm high
* Weight: 845 kg (?1860 lb)
