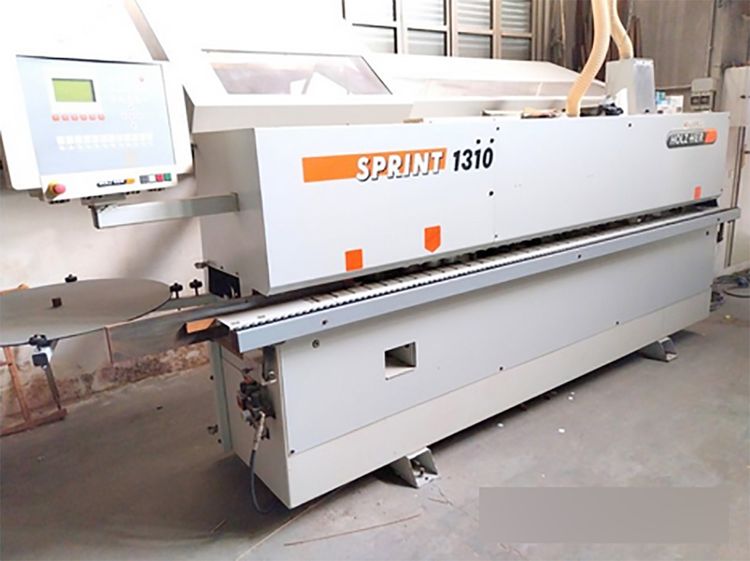

Holz-Her SPRINT 1310

Automatic edge bander with a cartridge-based adhesive system for wood edges, pvc, abs, veneer,
suitable for furniture, panels, custom-made furnishings, kitchens, bathroom cabinets, carpentry shops, and various - CE Standard

Features:
Quick glue replacement: patented cartridge system that allows for quick and efficient switching between EVA and PUR glue during operation, or for changing glue colors
Simply replace the cartridge, no complicated cleaning of the glue tank is required - Ready for use in 3,5 minutes

Technical data:
Min/max panel height mm 6/45
Applicable edge thickness mm 0,4 - 6
Max gluing height mm 51
Min panel width mm 60
Min panel length mm 180
Feed speed mt/min 8

Composition:
Gluing unit: Automatic feed for roll and strip edging - Patented Holz Her cartridge
system - Roller press unit
Tilting front and rear end trimming unit - Motors 0,22 Kw
Multifunction unit with controlled axis for trimming and chamfering - N° 2 motors 0,6 Kw
Edge scraper unit
Glue scraper unit for removing any glue residue
Brush unit for perfect cleaning

Holz Her control system:
Rotatable and tiltable control panel
All units can be activated individually
Unit functions with text display and graphical support
Display for unit preselection
Program list with program names and numbers
Self-diagnosis

Soundproof booth
Compressed air 6-7 atm
Overall dimensions mm 4300 x 1200 x 1675 h
Weight kg 1700
