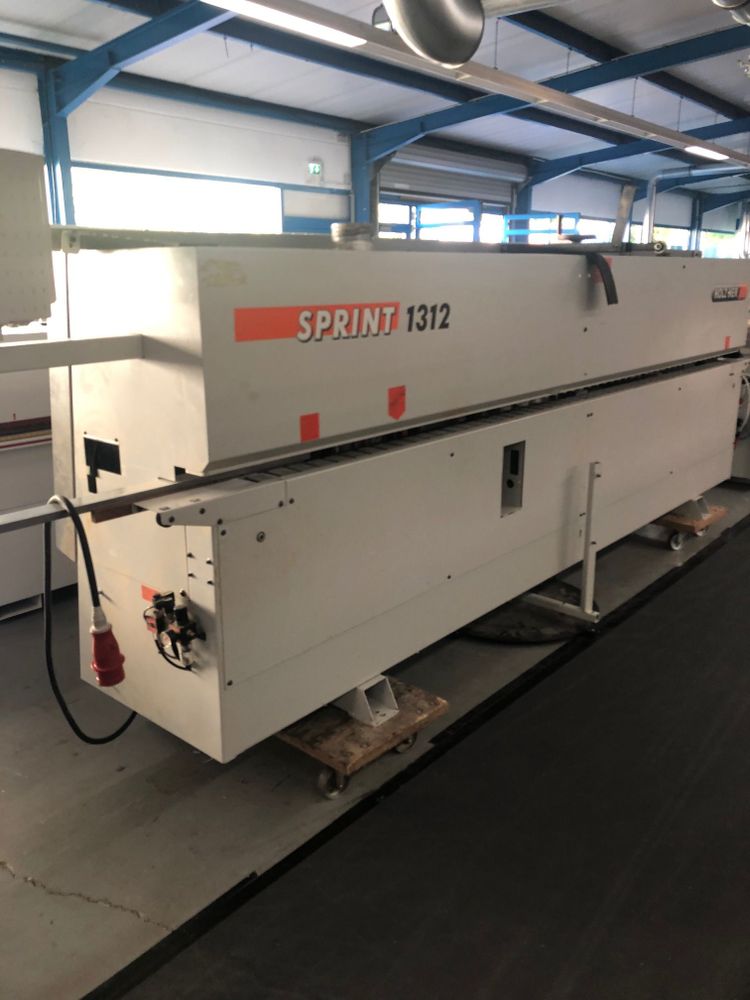

Holz-Her Sprint 1312

Used machine
Completely overhauled with new glue application system

Equipment:
- Manually adjustable infeed guide
- Milling unit 1961
- Edge feeder 1903
- Glue application station 1906 with tactile nozzle
- Pneumatic pressure unit 1816
- Trimming unit 1822
- Milling unit 1942 M radius, bevel, flush
- Blowing nozzle complete
- Scraper unit 1929
- Chip collection box
- Flat scraper 1964
- Extractor hood set
- Complete protective hoods

Technical specifications:
Total length: 5291 mm
Workpiece thickness: min. 6 / max. 50 mm
Edging thickness depending on configuration: 0.4-5 mm
Edging height max.: 55 mm
Edging length strips: min. 350 mm
Edge overhang/height per side: max. 3 mm
Workpiece width: min. 60 mm
Workpiece length: min. 180 mm
Feed speed: 12.5 m/min.
Extraction:
Jointing unit: 900 m³/h
Milling unit: 280 m³/h
Scraper unit: 280 m³/h
Static vacuum:
Jointing unit: 1490 Pa
Milling unit: 1650 Pa
Min. air speed: 20 m/sec.
Jointing unit connection diameter: 70 mm
Scraper connection diameter: 70 mm
Compressed air: 6 bar
