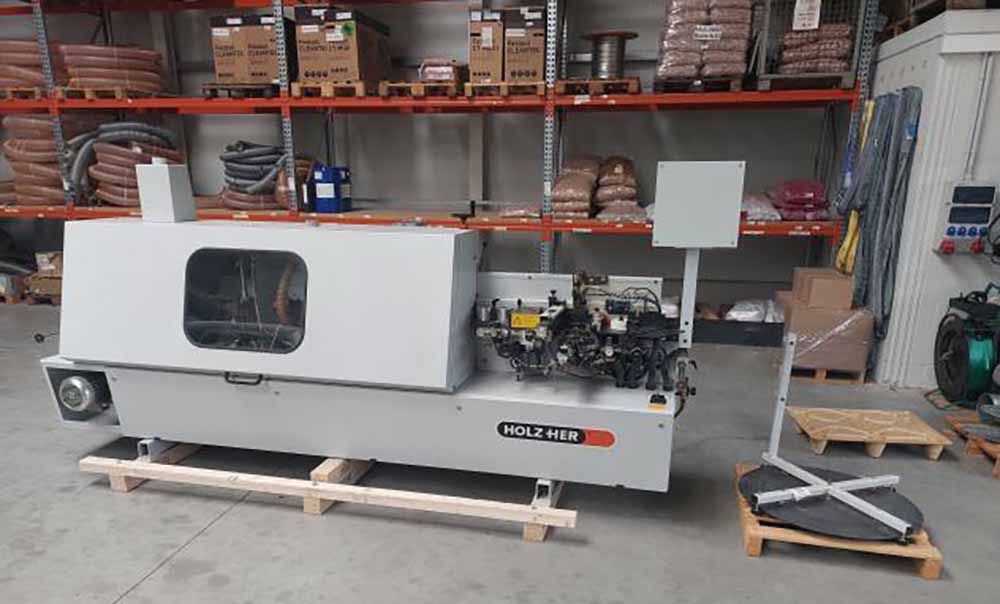

Holz-Her SPRINT 1315-2

Edge Banding Machines
Description:
Equipment:
- PLC control
- Edge magazine
- "Cartridge" adhesive application system
- Printing unit
- Trimming unit
- Milling unit, for flush/bevel/radius trimming
- Profile trimming unit
- Radius scraper

Technical specifications:
- Length: 4,445 mm
- Width: 1,500 mm

Working dimensions:
- Workpiece thickness: 6-45 mm
- Edge thickness: 0.4-8 mm
- Workpiece width: min. 60 mm
- Workpiece length: min. 180 mm
- Feed speed: 8/16* m/min
*without corner rounding
- Extraction connection: 2 x Ø 70 mm
Static vacuum 1650 Pa
Min. air speed 20 m/s
- Compressed air connection 6 bar
