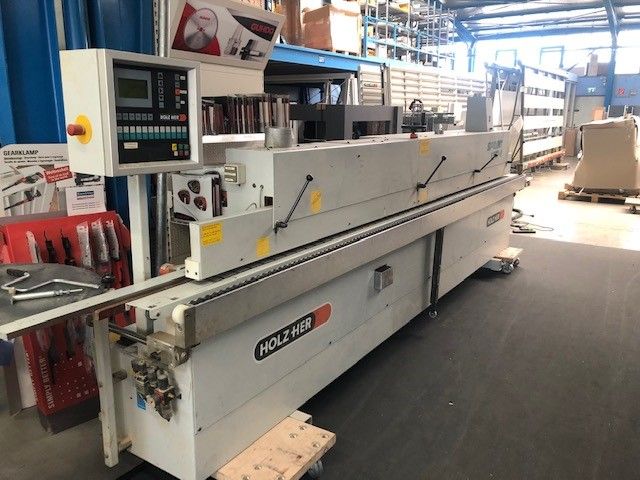

Holz-Her Sprint 1317-1

Used machine
Control system with LCD display,
pivoting control panel,
program memory,
manual pressure bridge adjustment,
feed via conveyor chain,
extendable workpiece support,
Joining milling unit 1961
2 x 2.0 kW
Diamond jointing cutters for up- and down-cutting,
Edge magazine 1903
Support plate 820 mm, max. loading capacity 40 mm
Automatic feed of rolls and strips
Adhesive application system 1906 cartridge system with tactile nozzle, with automatic reloading
Use of PUR adhesives possible,
Printing unit 1816 with driven roller,
pneumatic control of the printing unit
End-cutting unit 1918 2 x 0.22 kW pivoting from 0 to 10°, pneumatically adjustable
Milling unit 1942 MOT 2 for flush, radius, and chamfer milling motor-adjustable
Blow nozzle on the milling unit,
Corner rounding unit 1832
Corner rounding up to 3 mm radius, postforming up to r = 6 mm
Radius scraper unit 1929 MOT 2
Plastic edges up to 3 mm
Chip catcher for radius scraper,
insert-controlled surface scraper,
Blow nozzle on the surface scraper

Surface scraper 1964
Buffing unit 1940

Technical specifications :
Edge thickness for rolled material: 3 mm,
Edge thickness for strip material: 5 mm
Max. edge thickness for corner rounding: 3 mm,
Workpiece thickness: 6/45 mm,
Workpiece thickness for corner rounding: 45 mm,
Min. workpiece length: 180 mm,
Feed speed: 8 m/min,
Distance Workpiece support: 470 mm,
Support plate diameter for edge material: 800 mm,

Cutting knife for rolled material up to 3 mm,
Heat-up time: 3.5 min,
Joining cutter power: 2 x 2 kW,
Cutting saw power: 2 x 0.22 kW,
Milling station power: 2 x 0.6 kW,
Corner rounding power: 0.22 kW,
Extraction nozzle for jointing milling unit: 120 mm,
Extraction nozzle for milling unit: 70 mm,
Extraction nozzle for scraper unit: 70 mm,
Total length: 5,350 mm
Dimensions (L x W x H): 5,350 x 1,669 x 1,940 mm,
Weight: 1,200 kg
