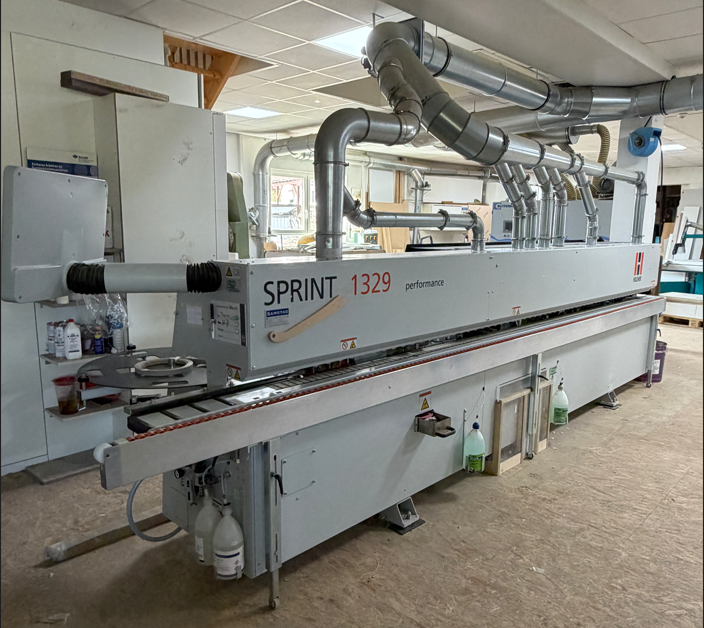

Holz-Her Sprint 1329 Performance

Used machine
Condition: Good (Machine has been extensively serviced annually. Last service in March 2026!)

Features:
iTronic - Adaptive pressure and adhesive quantity control, automatic, program-dependent fine adjustment
Adjustment: MOT PLC, infeed guide
Automatic chain lubrication: Intelligent automatic conveyor chain lubrication

Control: Edge Control 19
EL GRM, step-by-step 400V 50Hz 2.2kW V2 SPRINT 1329 PERFORMANCE 400V 50Hz

Edge Control 19 with 18.5" touchscreen color display 16:9

ECO MODE Energy Saving Mode
This energy saving mode is an automatic standby circuit.

Jointing Milling Unit 1802 (2 x 2.0 kW, 200 Hz, 12,000 rpm) with 2 milling units for joining the panel edge.

Cutting cutter, diamond Ø 70 x 64 x 30 mm, Z2+2, counterclockwise rotation
Air Stream System (HOLZ-HER / LEUCO patent)

Cutting cutter, diamond Ø 70 x 64 x 30 mm, Z2+2, clockwise rotation
Air Stream System (HOLZ-HER / LEUCO patent)

Edge Feeder 1901 SYNCHRO automatic transport of roller and Strip goods
Glue application station Glu Jet GJ301 automatic
(2.3 kW, 50 Hz)
DW501 pneumatic printing unit with PLC and motorized sprint

GM501 spray unit with lubricant after printing unit
Recommended for high-gloss edges

Cut-off unit 1918 (60 mm) pneumatic (2 x 0.45 kW, 12,000 rpm) pneumatically swiveling 0/10°

FR701 milling unit
100% repeatability at the touch of a button thanks to backlash-free mechanics

Air Stream System
Multi-cutter, diamond Ø 70.9 x 16 mm, Z = 2+2

Air Stream System
Multi-cutter, diamond Ø 70.9 x 16 mm, Z = 2+2

FF701 form milling unit
100% repeatability at the touch of a button Backlash-free mechanism

Cutter, diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4
Radius R = 2 mm, counterclockwise rotation with CM technology

Cutter, diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4
Radius R = 2 mm, clockwise rotation with CM technology

Scraper unit 1929 MOT4 incl. high-gloss package with motorized adjustment of the guide rollers,
HW indexable inserts for scraper holder
R = 2.0 mm (2 required)

Surface scraper FK701
With pre- and post-scratch function for removing adhesive residue

Spray unit TR501 for infeed and outfeed
(Release agent + cleaning agent)
