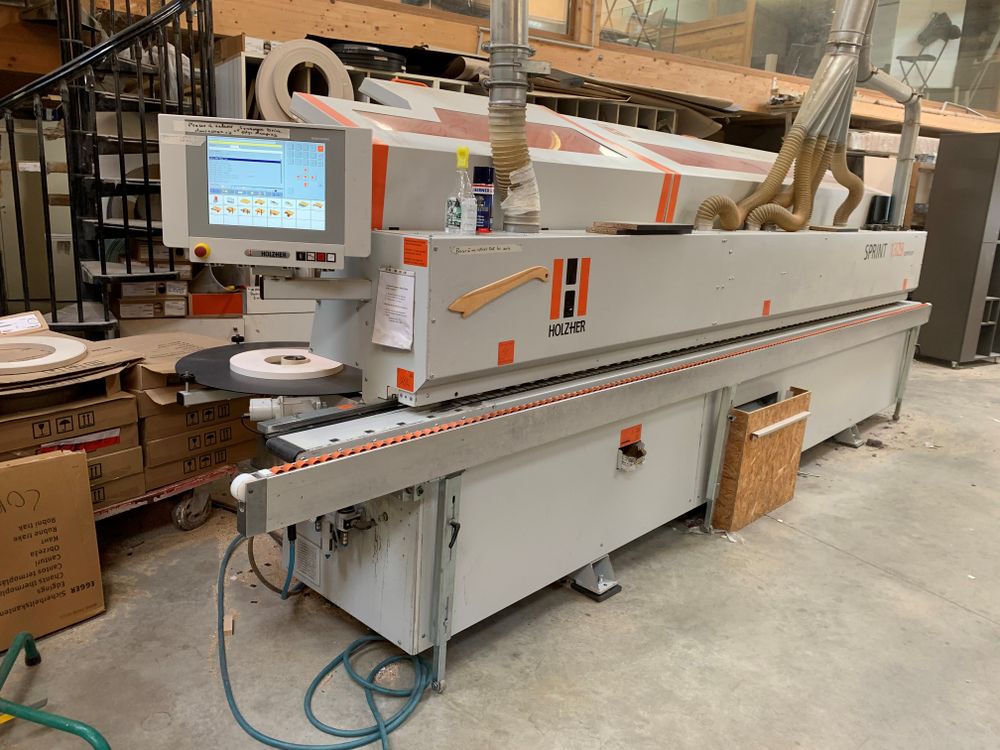

Holz-Her SPRINT 1329 Premium

Used machine
Machine has been completely overhauled
New Glue Jet 301 gluing system (upper section 1 mm)
All units checked
All cutters sharpened
All knives replaced

- Electrics for continuous feed 400 V / 50 Hz, 2.2 kW
- Motorized pressure bridge adjustment
- Automatic chain lubrication
- PPC 315 control system with 15" touchscreen
- ECO MODE energy saving mode
- 1350 mm infeed guide, motorized adjustment
- 1802 jointing unit (2 x 2.0 kW, 200 Hz, 12,000 rpm) with 2 milling units for jointing the panel edge.
- Diamond cutter Ø 70 x 64 x 30 mm, Z2, counterclockwise rotation for the jointing unit 1801 / 1802
- Diamond milling cutter Ø 70 x 64 x 30 mm, Z2, clockwise rotation for jointing milling unit 1801 / 1802
- Fully automatic edge feeder 1901
- Automatic Glue Jet GJ301 adhesive application station (2.3 kW, 50 Hz)
- Granule storage chute
- Pneumatic pressure unit 1913 MOT
- Pneumatic trimming unit 1918 (60 mm)
- Multifunctional milling unit 1826 MOT4 (2 x 0.65 kW)
- Air Stream System diamond milling cutter Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2.5 mm counterclockwise rotation
- Air Stream System diamond milling cutter Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2.5 mm clockwise rotation
- Form milling unit 1833 MOT4
- Diamond milling cutter Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4, radius R = 2.5 mm, counterclockwise rotation with CM technology
- Diamond milling cutter Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4, radius R = 2.5 mm, clockwise rotation with CM technology
- Scraper unit 1929 MOT2
- HW indexable inserts for scraper holders R = 2.5 mm (2 required)
- Surface scraper 1964
- Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm)
