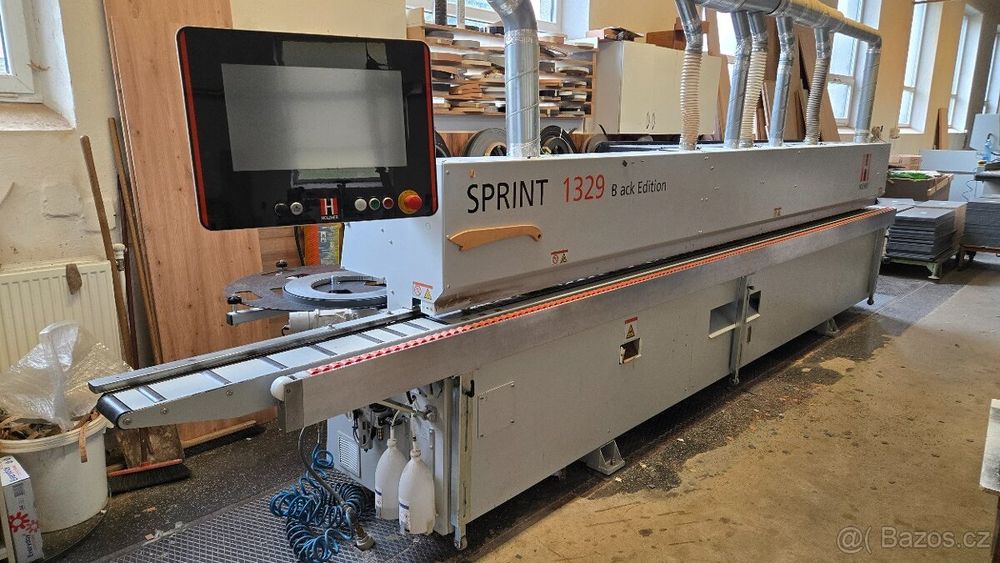

Holz-Her SPRINT 1329

Fully functional used edge banding machine
The machine is fully functional, regularly serviced and ready for immediate operation.
Control over 18.5" touch screen
Pre-milling unit (1× DIA cutter 70×64×30 LR and 1× DIA cutter 70×64×30 PR)
Administration of the edge SYNCHRO edge system when controlling the speed of the belt
Extended inlet ruler 1350 mm
GLU JET GJ301 AUTOMATIC adhesive unit. guarantees flexibility, perfect application of glue and easy operation.
Motor Pressure Zone
NC controlled multifunctional milling aggregate radius, plane, 45°
Twin-engine dripping unit with control from machine panel
Multifunctional cornering unit
Profile chillina with blow and motor adjustment of horizontal copy rollers and vertical.
Surface cidline
Brushing unit
Spray unit at machine input and output

TECHNICAL PARAMETERS OF THE MACHINE:
Thickness of the part: 8 - 60 mm
Edge thickness: 0.4 - 8 mm
Minimum width of the part: 60 mm
Minimum length of the part: 160 mm
Feed speed: 10 - 18 m/min.

DIMENSIONS AND WEIGHT OF THE MACHINE:
Dimensions for transport: 6100×1090×1900 cm
Weight: 2100 kg
