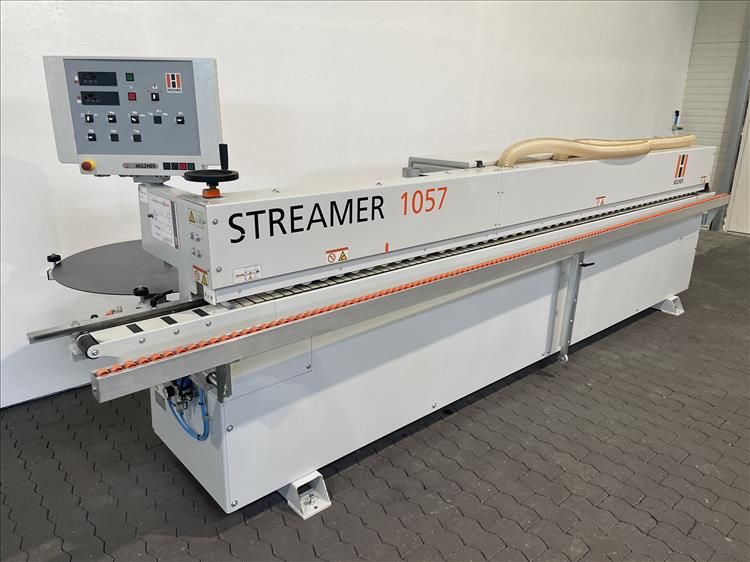

Holz-Her Streamer 1057

Edge banding machine - used
Control with LCD display, pivoting control panel,
manual, self-clamping pressure bridge adjustment, feed via conveyor chain,
extendable workpiece support,
diamond jointing cutters for up- and down-rotation, strip magazine, standby function,
GluJet cartridge system, cartridge system with tactile nozzle, use of PUR adhesives possible,
printing unit with driven roller, pneumatic control of the printing unit,
cross-cut saw with 2 HF motors, pneumatically pivoting cross-cut saw,
flush/radius trimming unit, diamond-coated trimming tools,
corner rounding unit with diamond-coated cutter, radius scraper,
chip catcher for radius scraper, surface scraper, air nozzle on the Surface scraper

Technical specifications :
Edge thickness for rolled material: 3 mm,
Edge thickness for strip material: 5 mm,
Max. edge thickness for corner rounding: 3 mm,
Workpiece thickness: 60 mm,
Min. workpiece length: 160 mm,
Feed speed: 10 m/min.,
Distance between workpiece support: 600 mm,
Support plate diameter for edge material: 800 mm,
Cut-off knife for rolled material up to: 3 mm,
Heat-up time: 3.5 min.,
Power of jointing cutter: 1.2/0.8 kW,
Power of cross-cut saw: 2 x 0.45 kW,
Power of milling station: 2 x 0.6 kW,
Power of corner rounding: 0.3 kW,
Extraction nozzle diameter of jointing unit: 2 x 80 mm,
Extraction nozzle diameter of cross-cut saw: 2 x 70 mm,
Extraction nozzle diameter of milling unit: 100 mm,
Extraction nozzle diameter of scraper unit: 120 mm,
Compressed air connection: 6 bar,
Total length: 4,630 mm,
Dimensions (LxWxH): 4,630 x 1,200 x 1,630 mm,
Weight: 1,200 kg
