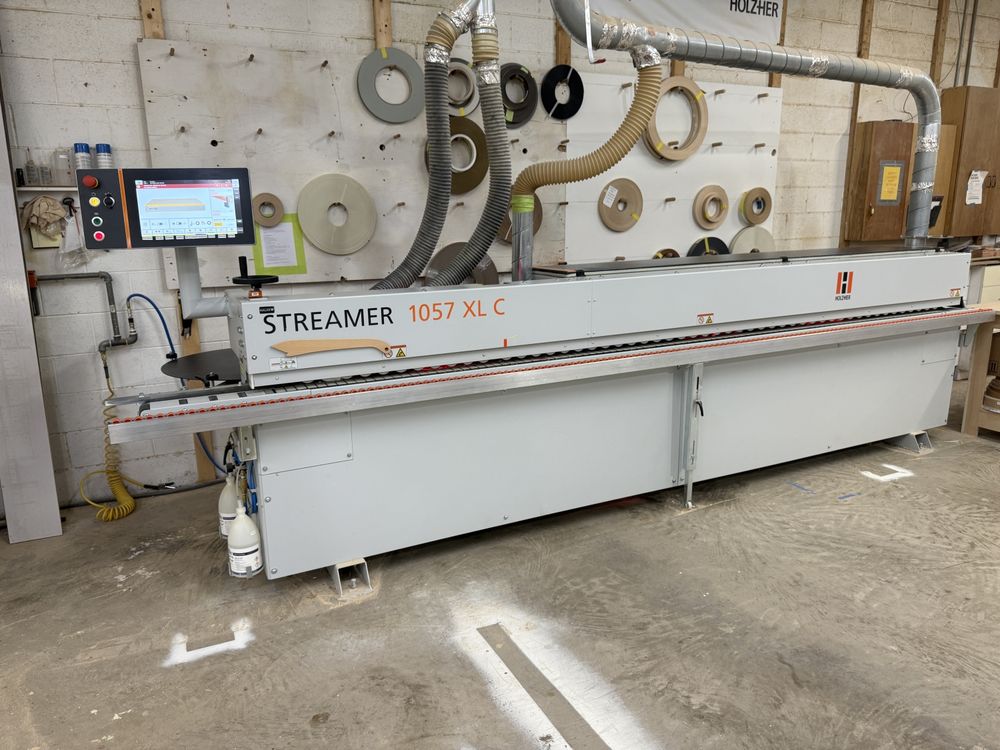

Holz-Her Streamer 1057XL C

Edge Bander Workpiece thickness: min 8 mm, max 45/60 mm
Workpiece width min 65 mm
Workpiece length min 160...250 mm
Workpiece pass-through length 2962 mm 3825 mm
Edge thickness max 3/6 mm
Workpiece overhang over the transport chain on the unit side 32 mm
Workpiece spacing 600 mm
Pressing force of a pressure roll approx. 400 N
Max surface pressure by 1st pressure roller 0.3 N/mm²
Drive feed 10 m/min
Drive output 0.55kW 1.1kW
Spraying TR201 * GM201
Pre-milling FG201
Edge feeder 1903
Gluing GJ301
Pressure unit 1912-3PNEU
End trimming 1918PNEU
Milling FR201 * FR301MAN
Form milling 1832
Scraper ZK301*ZK301PNEU
Surface Scraper 1964*FK701
Buffing 1940
