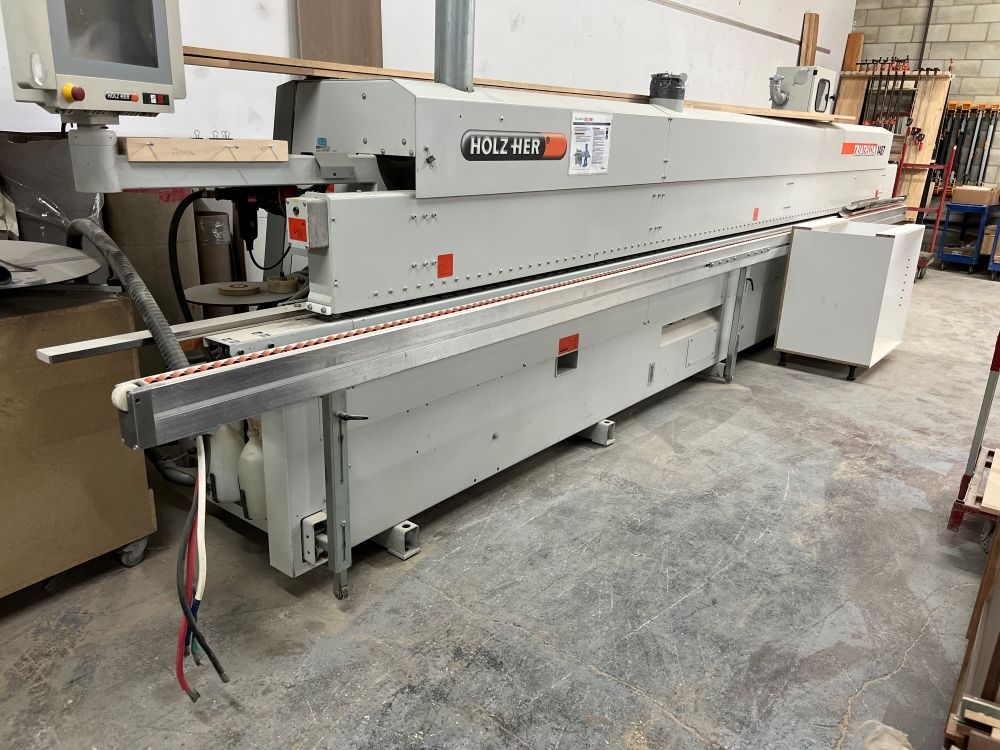

Holz-Her Triathlon 1487

Stations:
-1961M pre-milling unit, two cutter units each with a power of 2.0 kW
-1901M automatic edge-magazine
-1907M granulate gluing unit
-1926M pressure unit with three (3) rollers, each with individual pneumatic plunge and pressure control
-1916.3 end cutting unit, Two motors 0.45kW, 12000 RPM, Edge thickness up to 30mm
-1962 flush trimming unit, two motors 2kW, 12000 RPM, edge thickness from 0.4-30mm
-1966MOT5 fine/bevel/radius trimming, two motors 1.0 kW, 12000 RPM
-1929 profile scraper unit, max. edge thickness 3mm
-1935 edge sanding unit
-1965 flat glue scraper
-1851 buffing unit
-Edge thickness: .04-25mm
-Edge height: 51/66mm
-Panel thickness: 6-45/60mm
-Variable feed speed: 8-22 m/min
