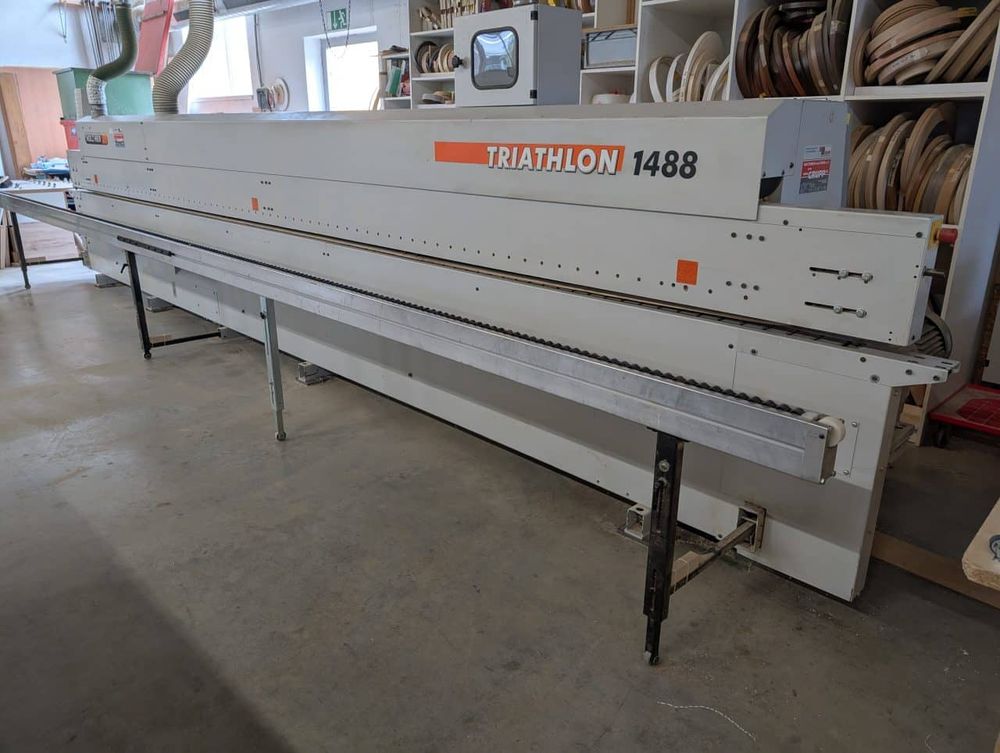

Holz-Her Triathlon 1488 FÜ + PU

Heavy-duty design – edge thickness 0.4 – 25 mm
PLC screen control (Edge Control)
Motorized, position-controlled height adjustment – ​​belt bridge
Automatic infeed guide
Pre-milling unit for attaching before the gluing section
Fully automatic edge magazine for rolls and strips
Adhesive application station with cartridges + PU gluing
Adhesive application using nozzle technology
Automatic Glue height adjustment
Workpiece height 6-60 mm
Pressure unit MOT
Cut-off unit for rolls and strips up to 15 mm edge thickness, with pneumatic adjustment of the cross-cut saw angle from 0-15°
Milling units – flush trimming for rolls and strips with 0.4-20 mm edge thickness
Profile trimming unit for longitudinal and end-face processing of edges, working height 45 mm
Scraper unit for bevels and radii with 2 scraper holders, pneumatic engagement and disengagement
Surface scraper unit
Instrument-controlled buffing unit
Automatic central lubrication for chain
Electronically controlled spray system at the inlet and outlet
Machine is in FUNCTIONAL OPERATION
Machine is in use and can be inspected and demonstrated at the seller's premises at any time
Arranged on behalf of the customer
