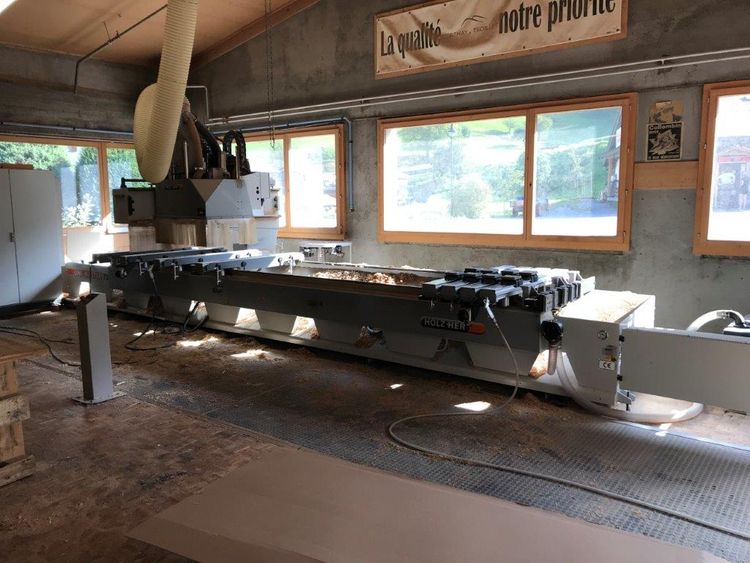

Holz-Her Uni-Master 7226 K

Used machine
- Base machine 555
- Workpiece support with 8 brackets, pneumatically clamped
- Drilling unit 7968, 18 vertical drilling spindles with a 32 mm pitch, individually accessible
T-shaped arrangement, 12 in the X-axis and 6 in the Y-axis, max. drilling diameter 35 mm (depending on panel thickness)
Spindle extension stroke: 70 mm
Direction of rotation: alternating right and left
n = 4725 rpm continuously adjustable
2 horizontal drilling units in the X-direction
1 horizontal drilling unit in the Y-direction
- Sawing unit 7946, 3.5 kW, pneumatically pivotable 90°, n = 5300 rpm, tool holder A Ø = 200 mm, I Ø = 30 mm, B = max. 3.5 mm Sawing/grooving in X and Y directions
- Milling unit 7935 with 16 kW water-cooled spindle
- Milling unit 7982 for lock case milling
- Tool changer 7996 with 18-station magazine (disk)
- Vacuum pump with 140 m³/h
- Handheld control unit
- PC control with TwinCAM WOP system
- Siemens control system
