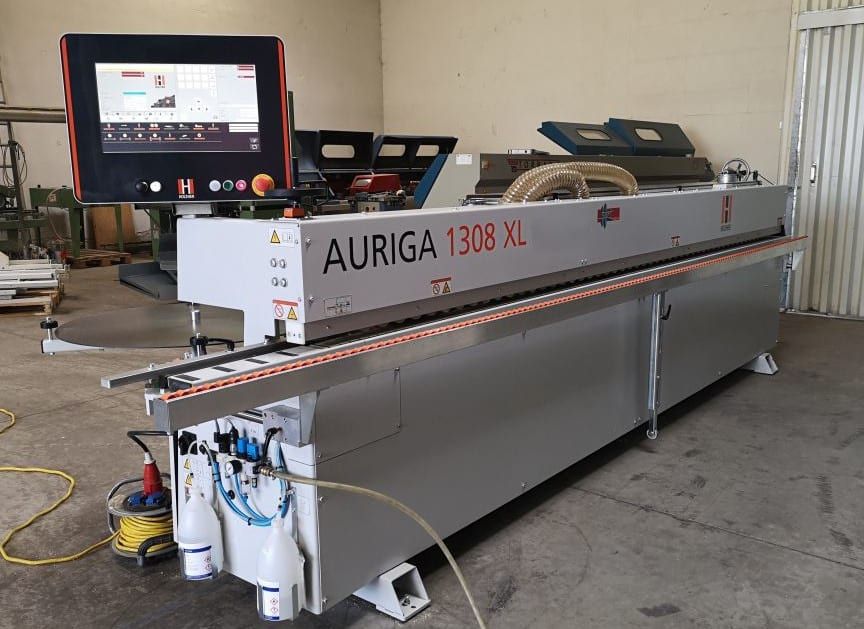

Holzher Auriga 1308 XL FÜ + PU

Compact design – edge thickness 0.4 – 8 mm
PLC screen control Edge-Control PPC 231 touchscreen
Pre-milling unit for attaching before the gluing section
Fully automatic edge magazine for roll and strip material
GLU JET adhesive application station with cartridges + PU gluing
Adhesive application via nozzle technology
Workpiece height 6-65 mm
Automatic glue height adjustment
Pneumatic printing unit 1912-3
Pneumatic cross-cutting unit 1918 for roll and strip material up to 8 mm edge thickness
With pneumatic changeover from 0-10° bevel of the cross-cut saws
Milling unit 1827 MOT 4, flush trimming 8 mm, radius milling – chamfer milling – 15° 1827 MOT NC axes via control panel
Form milling unit 1832 pneumatic Corner rounding up to 3mm edge thickness in a single pass

1929 MOT2 scraper unit for chamfers and radii with 2 scraper holders, NC axes via control panel
Surface scraper unit – finishing
Buffing unit – polishing
Spray system at infeed and outfeed
Complete tooling included
First delivery 2013
Machine is FUNCTIONALLY TESTED and in TOP CONDITION
